AH model drum type pneumatic clutch brake |
AH model drum type pneumatic clutch brake is a large torque pneumatic clutch brake, it can be used as clutch or brake according to your installation way. The torque is from 590 N.m to 1298350 N.m or more. Our HD AH model pneumatic clutch brake can replace eaton Airflex VC type very well in short delivery time.
The type AH element assembly is specifically designed and built for severe clutch or brake applications in which large inertia loads and sustained slippage would normally result in loss of torque and reduced operating life. It has narrow single element, wide single element, double elements transmit different lb.in, N.m, kgf.m torque. The air pressure different, the transmit torque is different, too. There are some models of it: AHN-11.5,AHN-14,AHN-16,AHN-20,AHN-24,AHN-28,AHN-33,AHN-37,HAN-42,AHW-14,AHW-16,AHW-20,AHW-24,AHW-28,AHW-32,AHW-38,AHW-42,AHW-26,AHW-46,AHW-52,AHW-51,AHW-60,AHW-66,AHW-76,AHWD-16,AHWD-20,AHWD-24,AHWD-28,AHWD-32,AHWD-38,AHWD-42,AHWD-46,AHWD-52,AHWD-51,AHWD-60,AHWD-66,AHWD-76...14VC1000, 16VC1000, 20VC1000, 24VC1000, 28VC1000, 32VC1000, 38VC1200, 42VC1200, 46VC1200, 51VC1600, 52VC1200, 60VC1600, 66VC1600, 76VC1600, 76VC2000... This AH/VC element is composed of side plate, AL shoe & lining, spring, torque bar, tube, rim, snap ring, quick exhaust valve and etc. The rotary seal, air coupling, drum, drum hub is customers', our element can matches with these parts to achieve working equipment connecting and releasing as need.

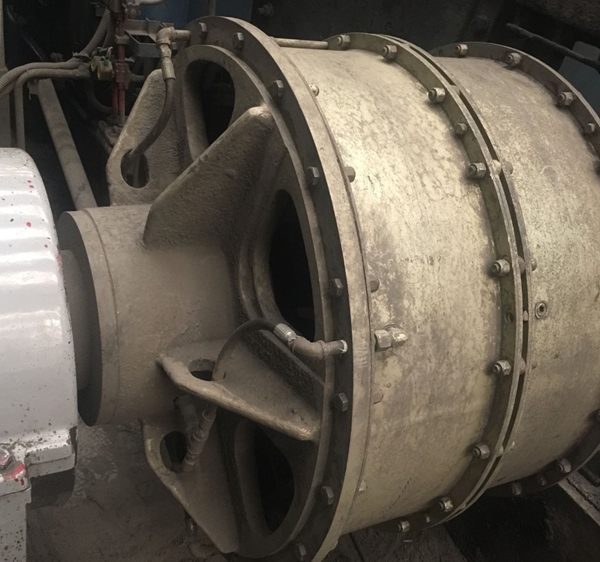

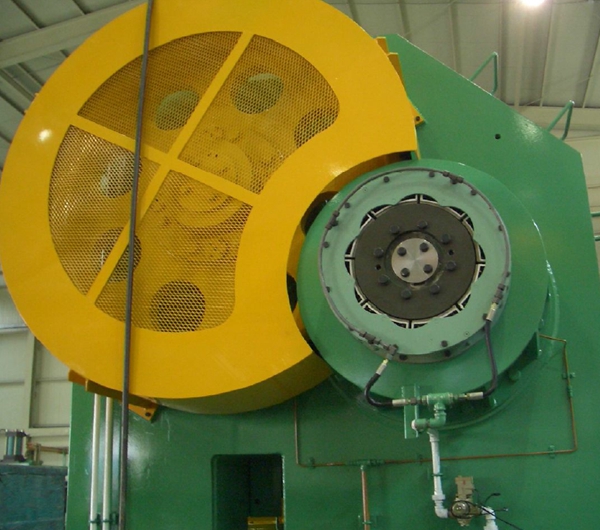

This AHW-28/28VC1000 clutch brake element is widely used in marine generator, winch, steel, paper making, printing, packaging, aviation, shearing, ball mill, press, forming, oil, metal processing and other industry fields. In mechanical industry field, Shanghai HD company not only matched with electric tool such as STANLEY BLACK & DECKER, Hilti, but also cooperated with garden machinery, textile machinery, gating system and other industries. Following are the different customer usage cases of our HD AH/VC element as clutch or brake for your reference: |
