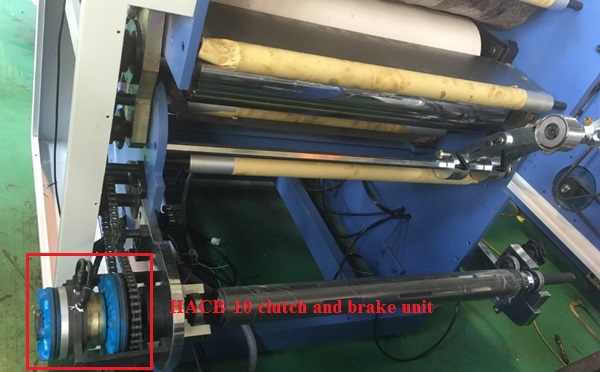

Pneumatic shaft clutch and brake unit |
HACB mode pneumatic shaft clutch and brake unit response is fast, it is suitable for clutch and braking, replacement lining keeping complete structure. Available shaft diameter is 20-110mm, when air pressure is 0.4Mpa, torque is 100-4000N.m. Clutch and brake are driven through air pressure for independent working, when air pressure exhausted, clutch and brake released by return springs. Power input via driving disc, and output via shaft. Flange and torque stop rod will prevent air chamber from connecting rotating. After supplying air pressure, clutch disc friction plate move towards to and compressed friction plate in axial movement, then brake piston with friction plate compressed brake disc.
|
