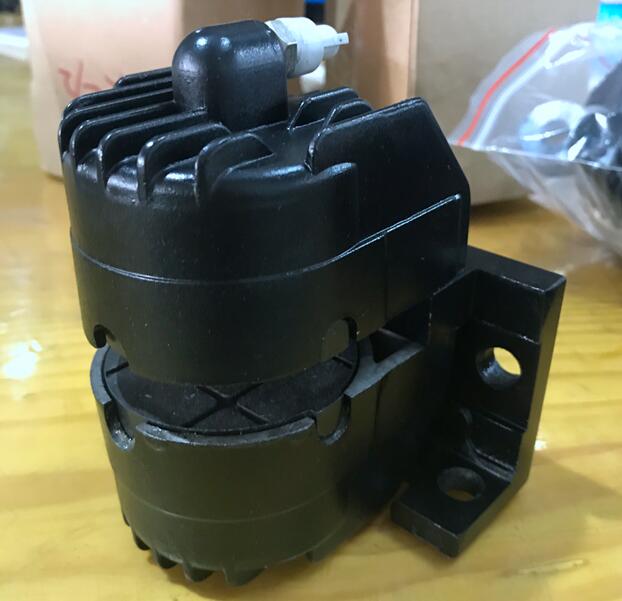

DBK250 model air multiple points brake and air caliper disc brake are operated by supplying air pressure by using a pneumatic cylinder piston clamps the friction plates to the hub, which is keyed to the shaft and thus transmits the torque When air pressure exhausts the springs move the piston in the opposite direction. When it is braking by springs, the axial thrust is operated by springs, supplying air pressure to cylinder piston, then brake will be separated. Because it uses air pressure as power supply, so this DBK model air multiple points brake is environmental protection, durable and low cost. Easy installation, simple maintenance, high precision tension control, various torque, good heat dissipation, so it is widely applied in packing, tissue paper and corrugated paper, no shaft paper frame and other industries. The friction disc of chucks brake can choose at will, convenient for the installation and the maintenance, it can use with the user brake disc.

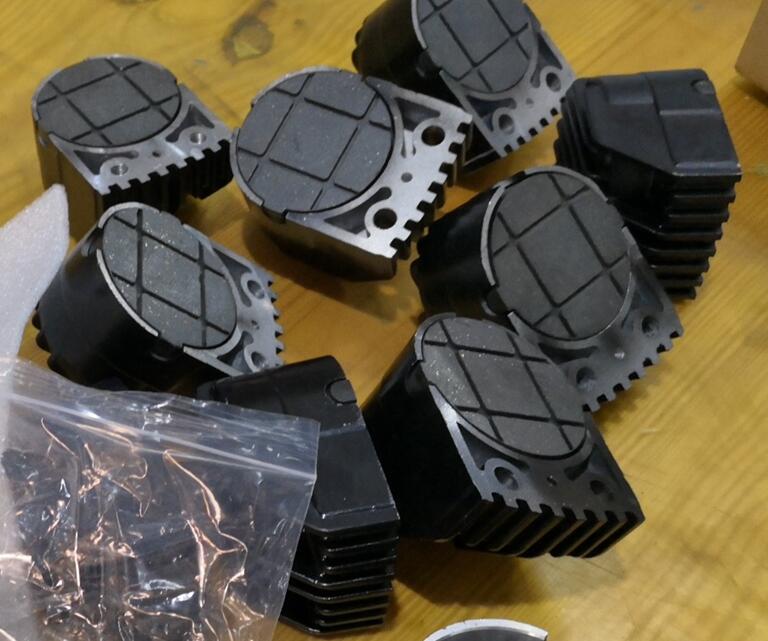

DBK-10 single module air caliper disc brake is one module of DBK250.6, it can be changeable if friction pad worn. Distance of friction pad is 10mm, 20mm is also available. This single brake can be used independently.
