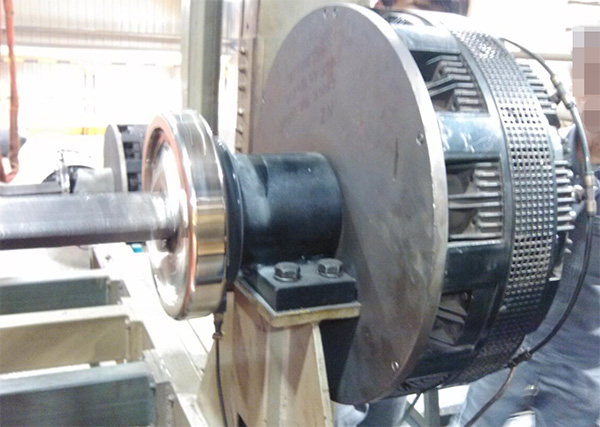

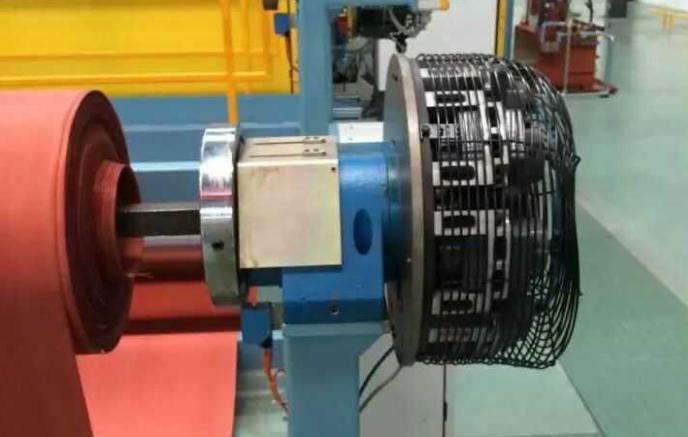

DBK250 Combiflex pneumatic brake |
The main function of DBK250 pneumatic brake is the conversion of mechanical energy into heat, which is then dissipated into the atmosphere.The amount of heat which can be dissipated by air cooled disc brakes are dependent on a high rotational speed, large disc diameter and radiant surface.With the addition of an electric fan fitted to the centre of the housing, the best possible thermal power dissipation was achieved without high dependency on speed, and doesn't need to increase the disc diameter in continuous slipping applications suitable for high heat dissipation. This pneumatic caliper disc brake can be match with safety chuck and air shaft for tension control. DBK250 combiflex pneumatic brake torque produced through cylinder piston pushed after inputting air pressure, when air pressure exhausted, piston will be back to the original place by springs, then torque released. Because the power source is air pressure, so the DBK250 CX250 pneumatic air brake is environment protect, durable and low cost. Easy installation, simple maintenance and high precision tension control can be used in paper, film making situation. Single module DBK-10, DBK-20, two modules DBK-10.2 and combined structure DBK-250.6 offering various torque. Fan cooled design has good heat dissipation, this multiplates brake is widely applied in packaging, thin paper, corrugated paper, no shaft base paper holder and other industries. The braking disc can be use customer's one with our instruction, it is convenient for assemble and maintenance. Following is the usage case of our customers: |
