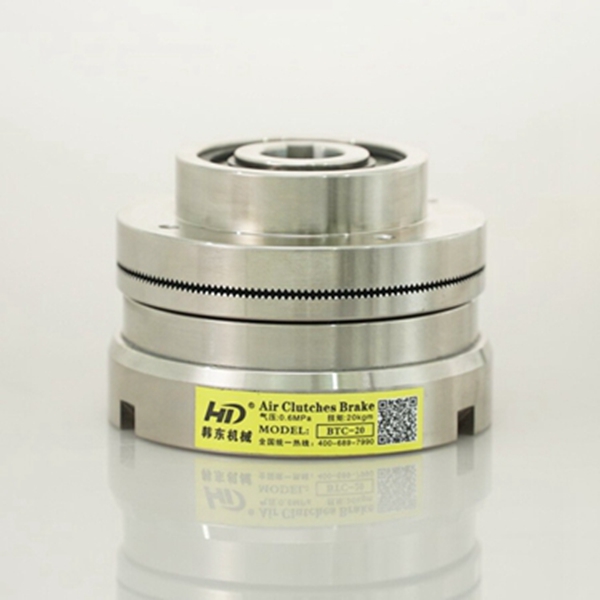

BTC model pneumatic tooth clutch used for small torque braking |

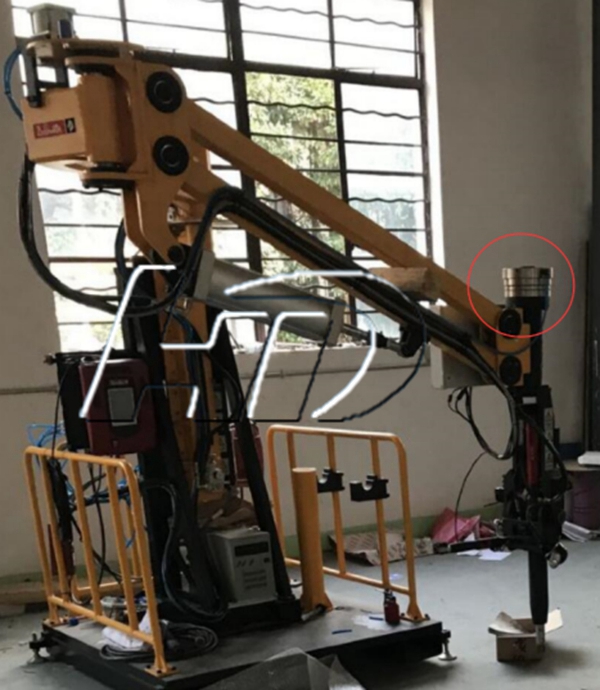

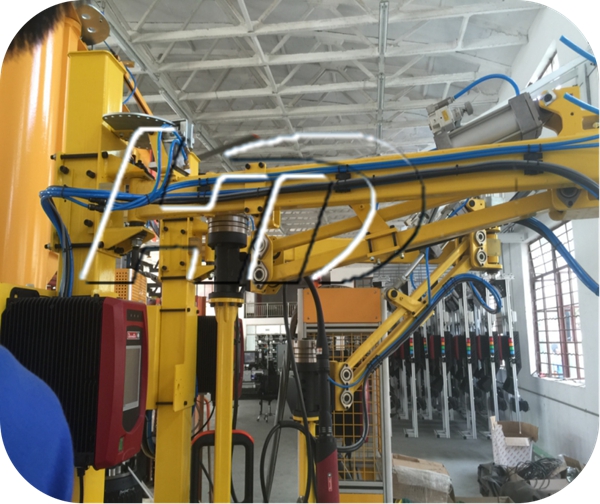

Compared with electromagnetic clutch, this pneumatic tooth clutch will not reduce torque and produce spark because of over heat, ensure heavy workload finished. Wide torque control range, it is most suitable work as a tension controller. Controlled by air pressure, soft start and stop. Through clutch operation, adjustment, stable engagement, so make full braking performance. Simple structure, easy maintenance and long service life. Pneumatic tooth clutch can transmit power accurately without slippage since each tooth fits exactly to one another, it is suitable for dry working environment. Narrow space, while transmit high torque in compact size. When installation this clutch, make sure there is a certain gap between two ends of tooth,and no tooth grinding phenomenon when idle, but this gap can’t larger than δ value. BTC model pneumatic clutch used in industrial mechanical arm, usually use small brake, through reverse installation to reach small torque braking. Its disadvantage is that it will lead to a certain degree abrasion of brake. Now HD company is researching a more efficient, energy saving product, more information, welcome to contact us.
BTC model pneumatic tooth clutch application: BTC mode pneumatic tooth clutch is through center axle hole key connected with driving shaft, flange end connects with driven tooth plate. Except shaft-shaft installation, shaft-belt pulley, shaft-chain wheel, shaft-gear wheel installation are also available.
This BTC pneumatic tooth clutch is widely used in tire forming machine, convey machine, automatic equipment, food machinery, medical machinery, printing machinery,packaging machinery, corrugated machinery, electrical machinery, lead wire equipment, textile machinery, rubber machinery, tire machinery, production line, paper making machinery, construction machinery, plywood machinery, punching machine, die-cutting machinery, crusher and etc. It also applied in robot, mechanical arm and other high technology industry.
|
