QDE-N normal braking brake usage case |

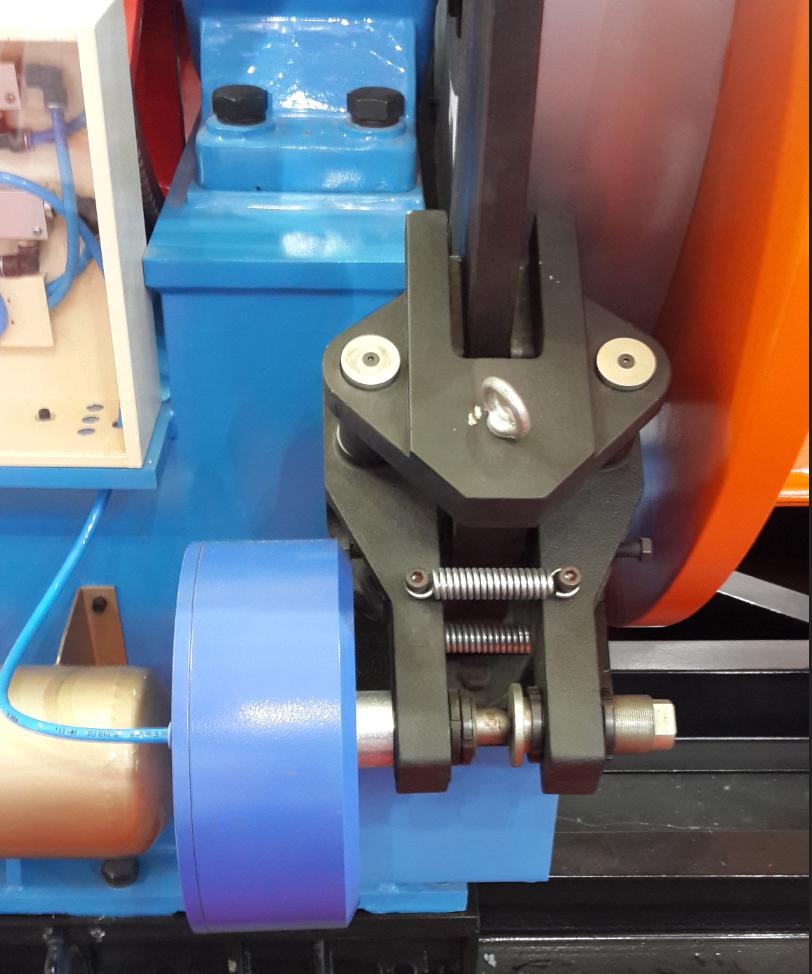

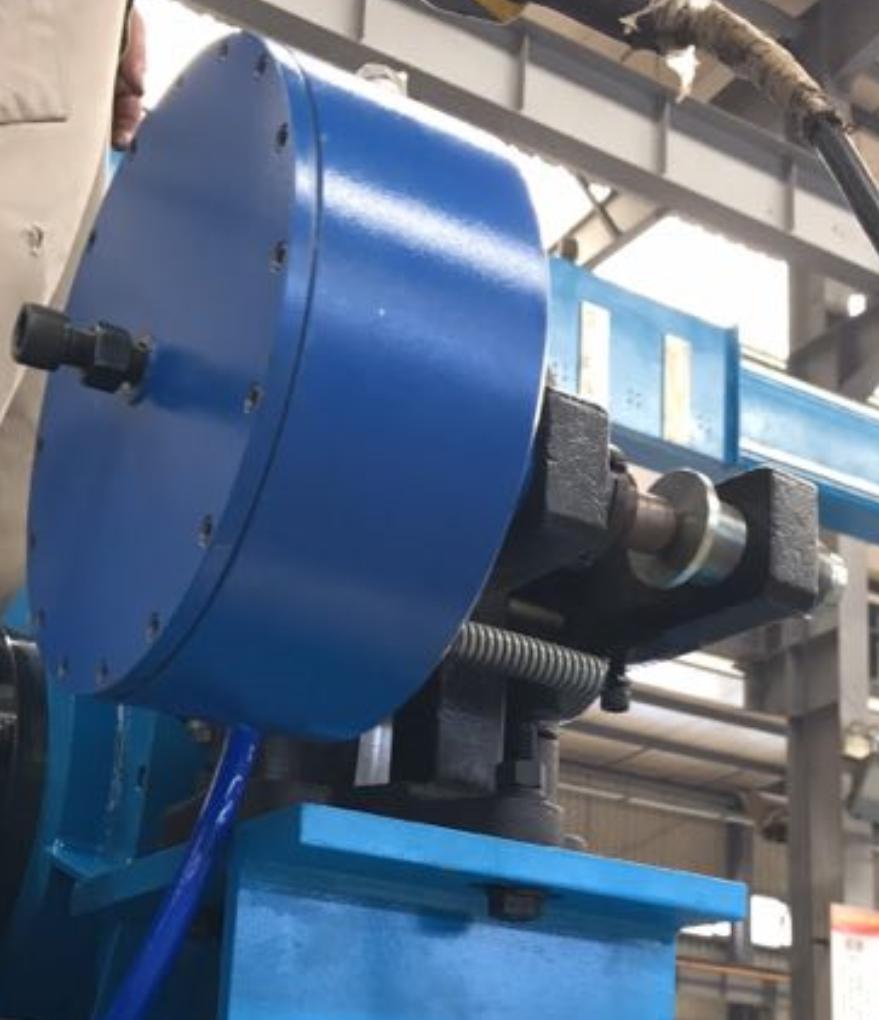

This failsafe pneumatic caliper brakes are used in various industrial ranges where pneumatic operation is possible, normally this brake is chosen for emergency and parking brake usage. It is caliper disc structure, the clamping force of each model is generated by helical springs with low reaction times. All brakes operate up to a maximum pressure of 0.6Mpa. The brake can be installed in any position since it has a lever balancing and lining pad alignment system. There are QDE-3.5N and QDE-4N two models, when braking disc diameter is different, transmit torque is different,too. The max torque can be reached to 20,000N.m or 44,000lb. Below two pictures are the customer usage case of it: |
