HBS pneumatic positive tooth clutch is a new type of tooth clutch, concave-convex structure is suitable for high speed connect and rotation. Tooth structure is not like the friction structure, it will not produce dust, so it it can be used in the medical, food, face mask equipment and other strict working situation.
HBS pneumatic positive tooth clutch is a new type of tooth clutch, concave-convex structure is suitable for high speed connect and rotation. Tooth structure is not like the friction structure, it will not produce dust, so it it can be used in the medical, food, face mask equipment and other strict working situation.
Following are the characters of this pneumatic tooth clutch:
1.Inside and outside tooth connection, compact structure, not easy slippage, transmit high torque.
2.Rapid response, integration or connection finished in instant.
3.Low speed and static connection, can reach high speed working after connection.
4.Dry and wet working environment both can be work.
5.Separate structure is also available
Following are the characters of this pneumatic tooth clutch:
1.Inside and outside tooth connection, compact structure, not easy slippage, transmit high torque.
2.Rapid response, integration or connection finished in instant.
3.Low speed and static connection, can reach high speed working after connection.
4.Dry and wet working environment both can be work.
5.Separate structure is also available

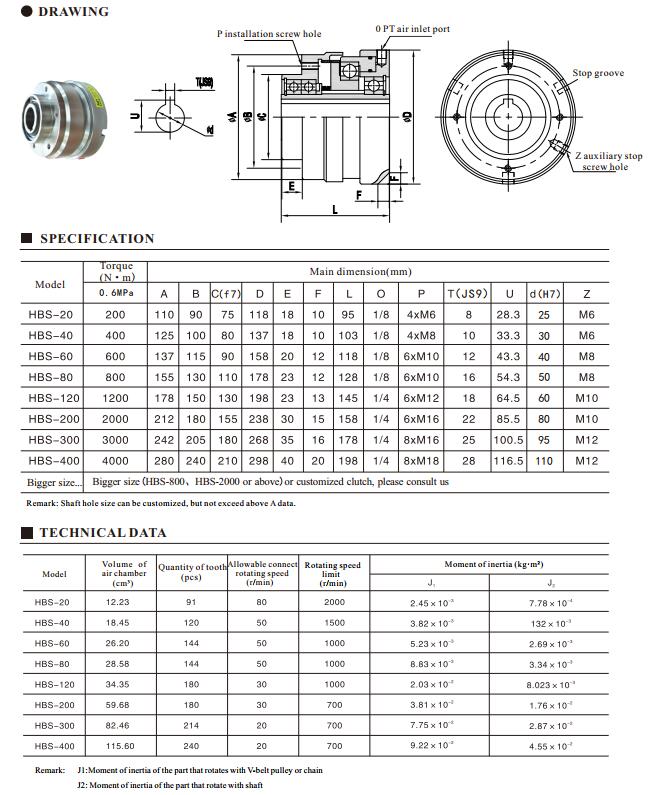

There are some models of this pneumatic concave-convex tooth clutch:

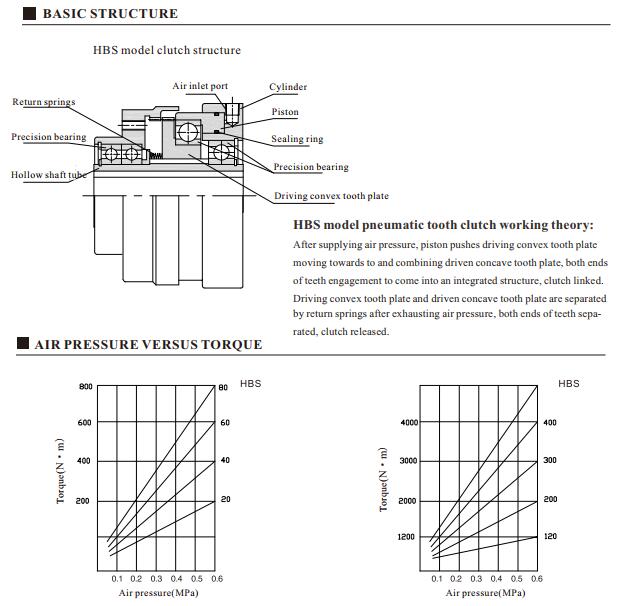

This is the structure of HBS pneumatic tooth clutch:

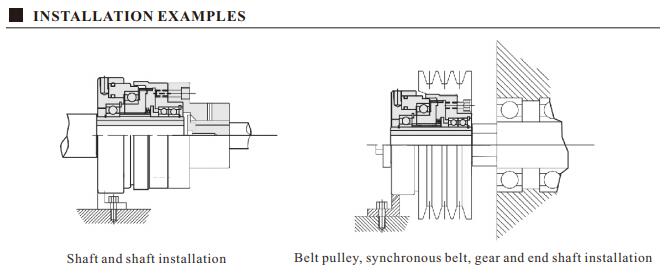

As to this pneumatic tooth clutch installation, below examples for your reference:
As to this pneumatic tooth clutch installation, below examples for your reference:
