As the development of intelligent automation industry, the mechanization replaced the labor more and more. Many workshops use mechannical arm to operation. The pneumatic tooth brake as a core component of mechanical arm. This new type pneumatic tooth brake using new Aero-aluminium material, light and small. It can realize save space and make sure precision orientation.
New type of tooth brake is normal braking, it is a kind of safe brake.
Following are the characters of it:
1. Suitable for mechanical arm joint braking.
2. Aero-aluminium material, small, light, high strength and good wear resistance.
3. Both ends of teeth braking, not easy slippage, high braking torque and no slippage gap.
4. Braking and releasing finished in instant, reach accurate orientation.
5. Special processing for both ends of teeth, they are strong, wearable, durable and lone service life.
6. Normally braking structure.
This special tooth clutch is widely used in mechanical arm, screws, bolts and nuts fix are available.
Following are the characters of it:
1. Suitable for mechanical arm joint braking.
2. Aero-aluminium material, small, light, high strength and good wear resistance.
3. Both ends of teeth braking, not easy slippage, high braking torque and no slippage gap.
4. Braking and releasing finished in instant, reach accurate orientation.
5. Special processing for both ends of teeth, they are strong, wearable, durable and lone service life.
6. Normally braking structure.
This special tooth clutch is widely used in mechanical arm, screws, bolts and nuts fix are available.

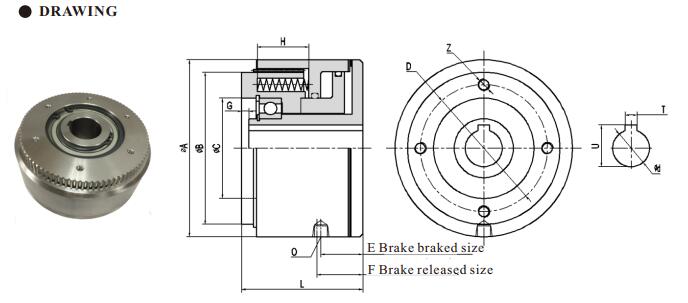

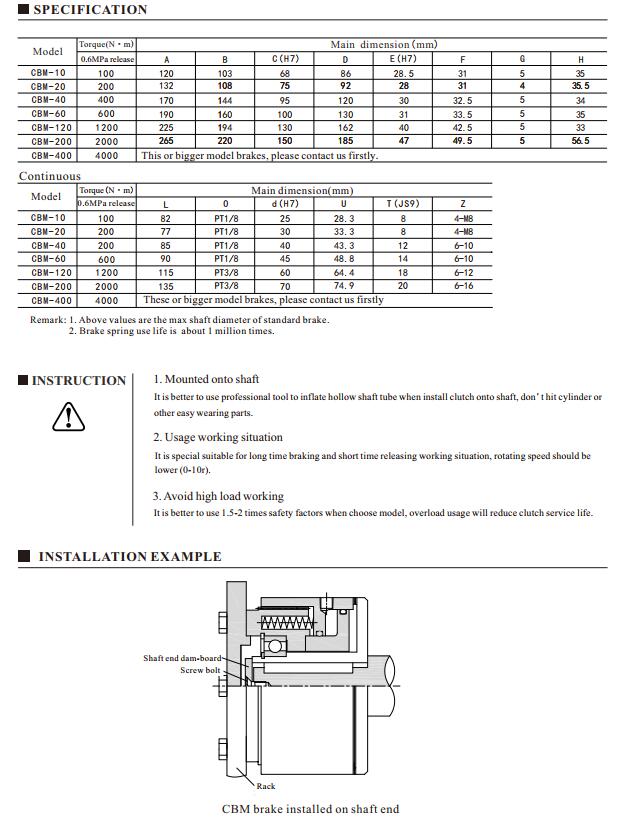

This CBM pneumatic small and light tooth brake can transmit high torque, below is the size and technical of it. Transmit torque is from 100N.m to 4000N.m, you can check the brake torque you need and choose relevant model of it. On the other hand, the installation space is very important, so it is better to measure your installation space and check with our tooth brake axial and radial dimension accordingly.

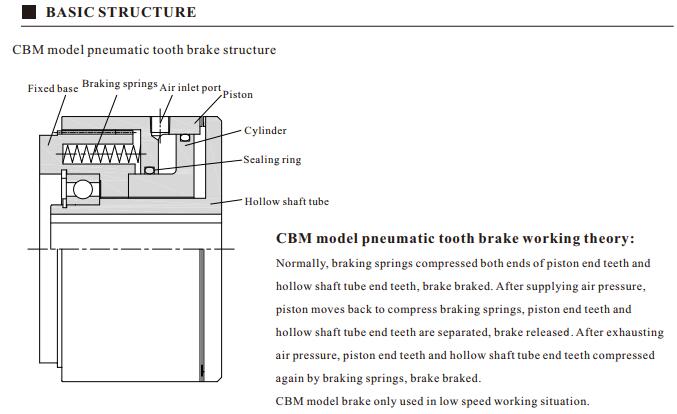

CBM pneumatic tooth brake structure is different with regular caliper disc brake, following is the structure of it:
