NAC Air shaft clutch is linked by air pressure and released by return springs. After inputting air pressure, driving plate axial movement connectting with friction disk, clutch linked, so as to transmist driving power from driving part to driven part. Friction disk can be replaced via loose screw nuts on plate, it is easy and convenient. Friction type clutch, it is suitable for high speed connecting and rotating.
Characters and advantage of pneumatic air shaft clutch NAC:
1. Easy installation: The installation method is not affected by the position of air inlet port.
2. Continous working or high frequency usage: Continous working with good heat dissipation, good sliding power.
3. Good working: It can be used for tension control or high frequency usage, practical and accurate.
4. Soft start: Soft start and overload protect.
5. Torque limiter: Through adjust air pressure to adjust torque force.
6. Wide torque adjustment: Air pressure adjustment range is 0.4-6kgf/cm2.
7. Permissibility: Take air pressure as power source, it is permissibility and safe.
8. Safe and long service life: Compare with electromagnetic clutch, pneumatic clutch will not produce spark, safe and long service life.
9. Easy maintenance: Good heat dissipation, friction pad is wear-resisting, two cuts design is easy for replacement.
1. Easy installation: The installation method is not affected by the position of air inlet port.
2. Continous working or high frequency usage: Continous working with good heat dissipation, good sliding power.
3. Good working: It can be used for tension control or high frequency usage, practical and accurate.
4. Soft start: Soft start and overload protect.
5. Torque limiter: Through adjust air pressure to adjust torque force.
6. Wide torque adjustment: Air pressure adjustment range is 0.4-6kgf/cm2.
7. Permissibility: Take air pressure as power source, it is permissibility and safe.
8. Safe and long service life: Compare with electromagnetic clutch, pneumatic clutch will not produce spark, safe and long service life.
9. Easy maintenance: Good heat dissipation, friction pad is wear-resisting, two cuts design is easy for replacement.

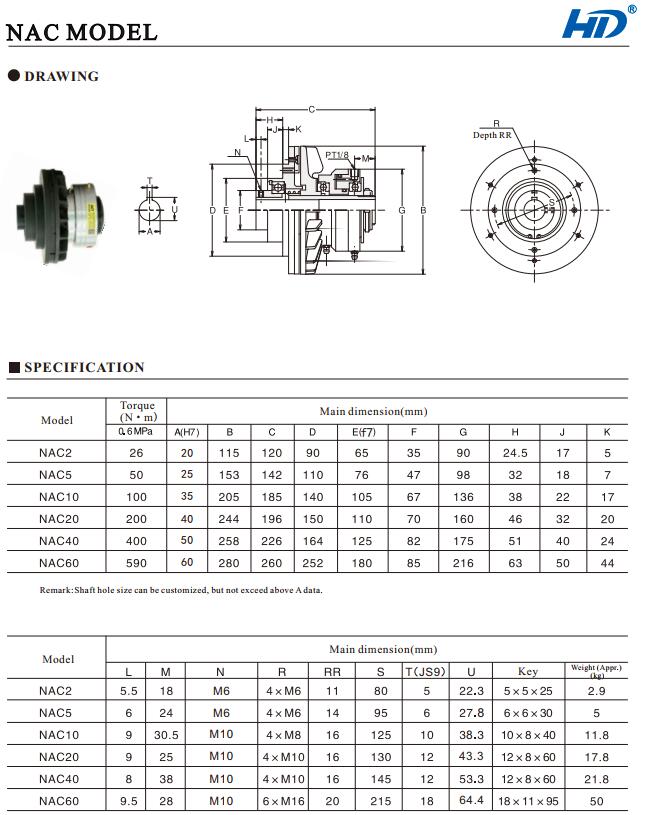

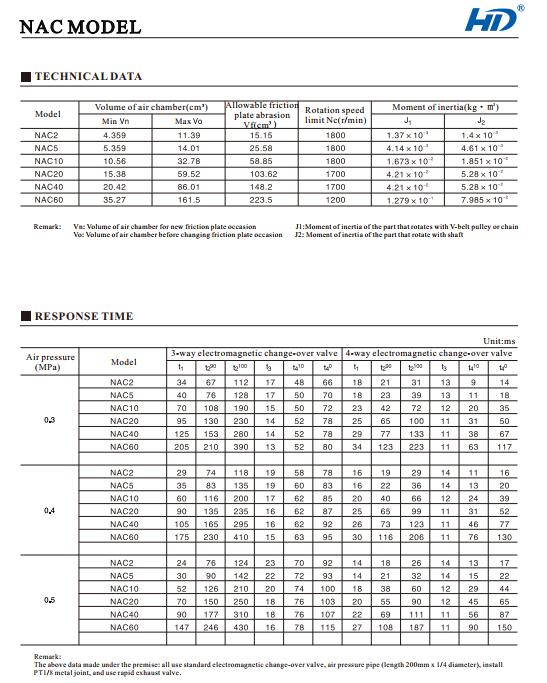

NAC is a friction type air shaft clutch, it can delivery high torque. Following is the detail structure and technical data of it:

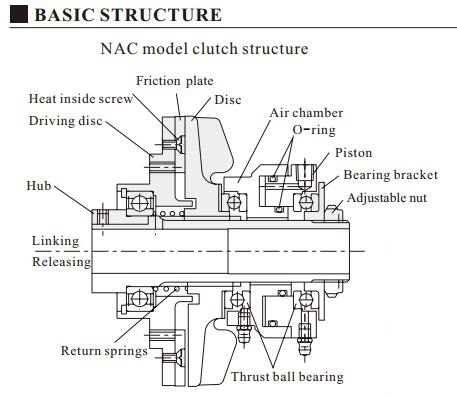

NAC industrial pneumatic clutch structure:
