Micro pneumatic clutch NAC-1.4 is based on standard regular NAC pneumatic clutch, and then made with smaller dimension. It is can save material and applicable for limit installation situation usage. So this micro pneumatic clutch NAC-1.4 is also driven by air pressure. When injecting air source, this clutch linked for power transmission, after letting out air source, then this NAC-1.4 clutch released.
Micro pneumatic clutch NAC-1.4 is a flexible and small size air clutch, it is made with high precision. This micro pneumatic clutch NAC-1.4 torque is during 0-13.7N.m, it is adjustable via air pressure. Small size pneumatic clutch NAC-1.4 is suitable for high precision requirement and limit installation space usage. Complete structure is more compact and beautiful, it is also made of high performance.

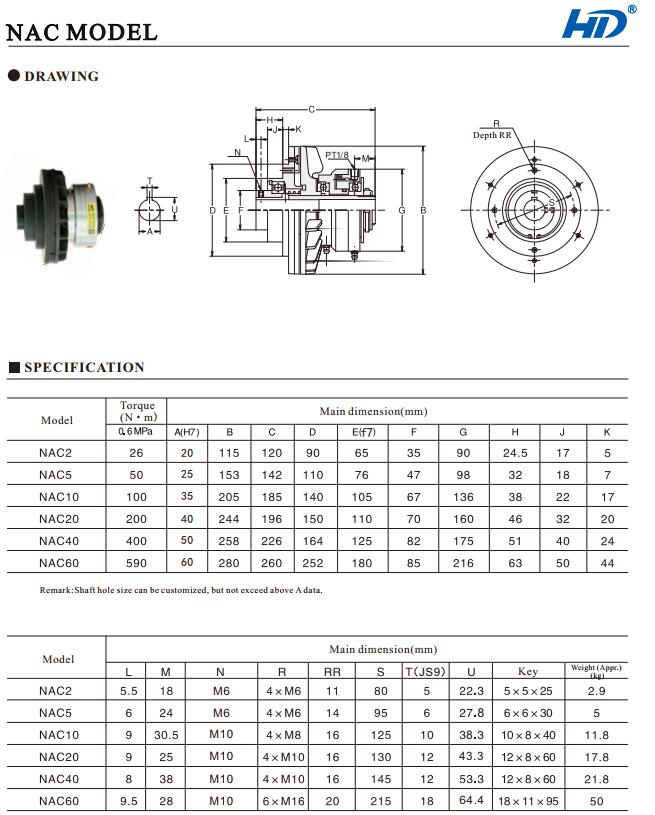

Micro pneumatic clutch NAC-1.4 is based on regular NAC pneumatic clutch, so its technical data can refer to following technical data.

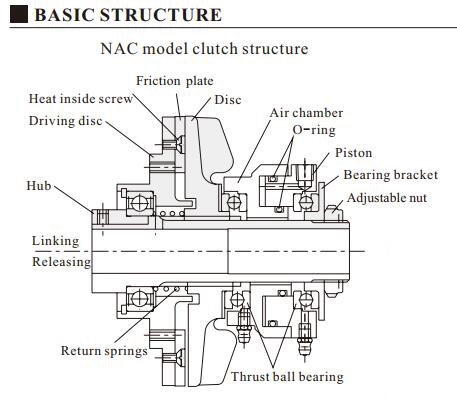

Micro pneumatic clutch NAC-1.4 structure is similar with regular NAC pneumatic clutch. It is also through friction pads and disc connection, so as to link power.
