Taking-up equipment uses safety chuck to rewinding and unwinding roller material. As needed, this safety chuck is connected with motor for driving and driven. On the extended shaft, it can be matched with manual brake, pneumatic brake, pneumatic clutch and other spare parts, so as to control roller material's tension force. Handong company is a professional manufacturer of transmission parts, when you order it, we can match them in an integrated structure for you in our factory.
In taking-up equipment, safety chuck is widely applied for roller material winding and unwinding. For rewinder, usually safety chuck will match with NAC air clutch for working together, so as to realize tension control.
There are some characters of this safety chuck and NAC air clutch group:
1. Integrated structure, science and humanization.
2. Bear large torque, eleminate loose situation during working.
3. Flexible match, such as manual brake, pneumatic brake, clutch and etc.
4. Cover made of stainless steel tube and sheet material, strong and twisting resistance.
5. High strength of extension, flexion strength.
6. Convenient and enhance working productivity.
Following are the technical data of safety chuck and NAC air clutch for your reference. Then you can check which model of them do you need.

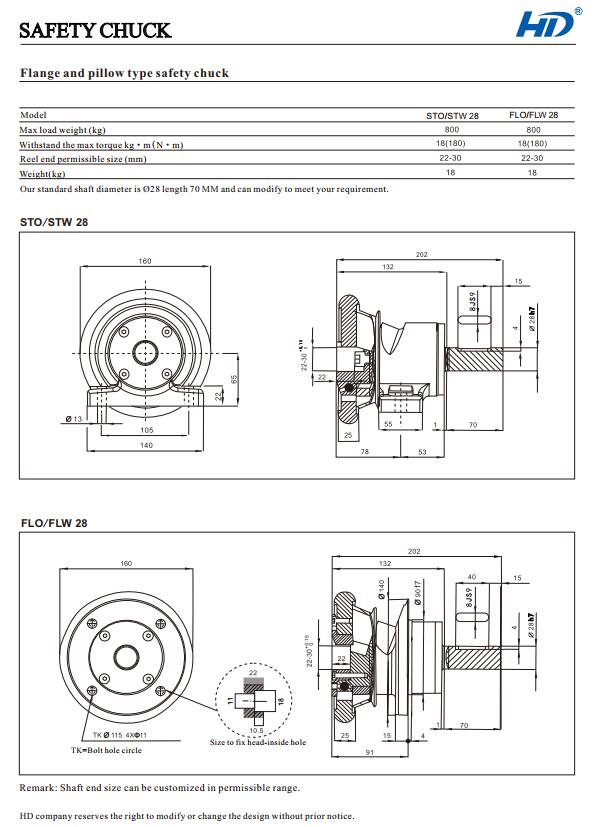

Safety chuck:

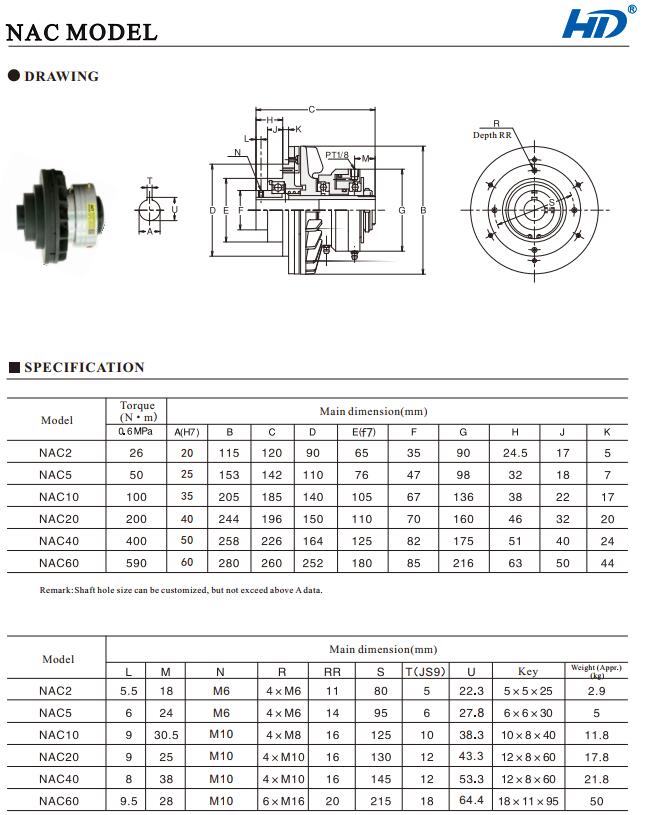

NAC air clutch:

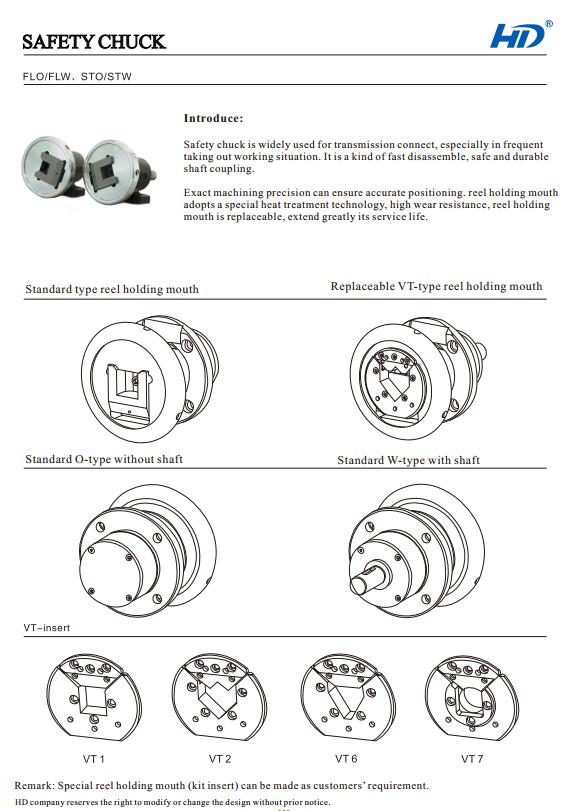

Structure of safety chuck and NAC air clutch
