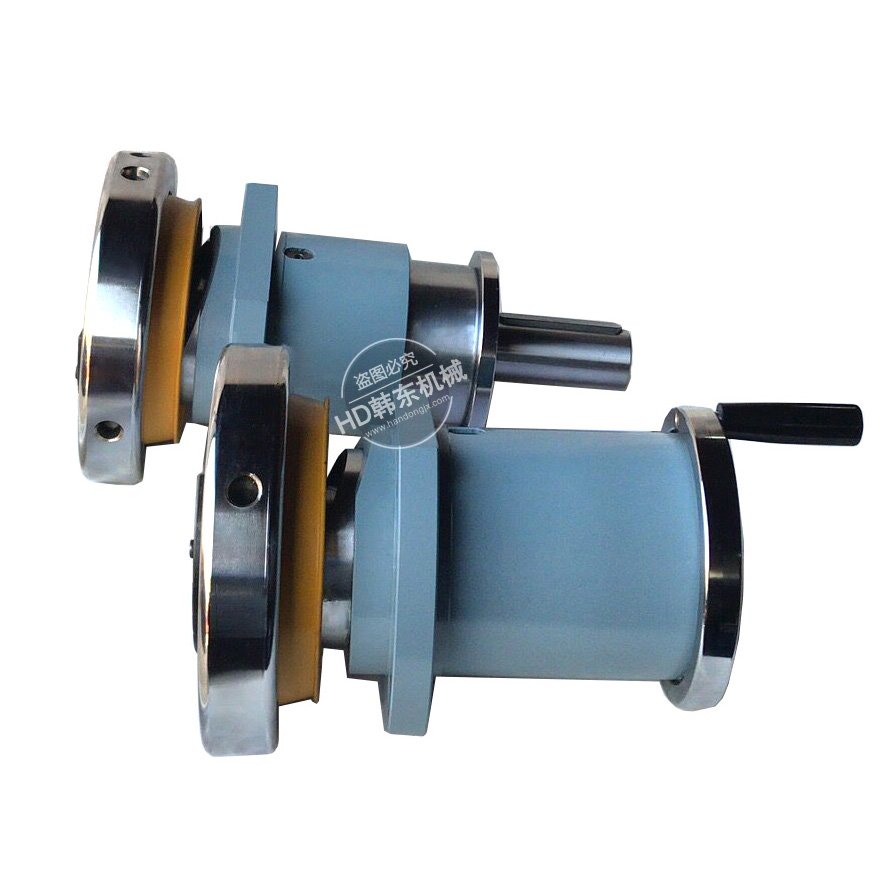

SKWF Sliding safety chuck
SKWF model sliding safety chuck

This sliding safety chuck is safe and convenient for (paper) roll loading and unloading. It is widely applied in working machinery, coiling machine, wire equipment, paper making machinery, trimming machinery, unwinding machine, orientation machine, tension controller, packaging machinery, printing machinery, textile machinery, wire and cable machine, winding machine, tire forming machine, curtain cutting machine, car guide to open and etc.

152-0180-5440

SKWF model sliding safety chuck

SKWF model sliding safety chuck characters:
Economic and easy installation, coupling transmission, loading and unloading is the fast, stable, easy and safe. It can bear high torque and there is no shaft loose during rotating.

SKWF model sliding safety chuck application:
This safety chuck is widely applied in working machinery, coiling machine, wire equipment, paper making machinery, trimming machinery, unwinding machine, orientation machine, tension controller, packaging machinery, printing machinery, textile machinery, wire and cable machine, winding machine, tire forming machine, curtain cutting machine, car guide to open and etc.

滑动安全卡盘

SKWF MODEL SLIDING SAFETY CHUCK TECHNICAL DATA:

Name: SKWF model sliding safety chuck
Brand: HD
Model:SKWF28,SKWF-35,SKWF-50,SKO/W-28,SKO/W-35,SKO/W-50,SKOF-28, SKOF-35.SKOF-50
Weight: 25-85kg
Air pressure: 0.1-6 bar
Max bearing torque: 18-8000 kg.m

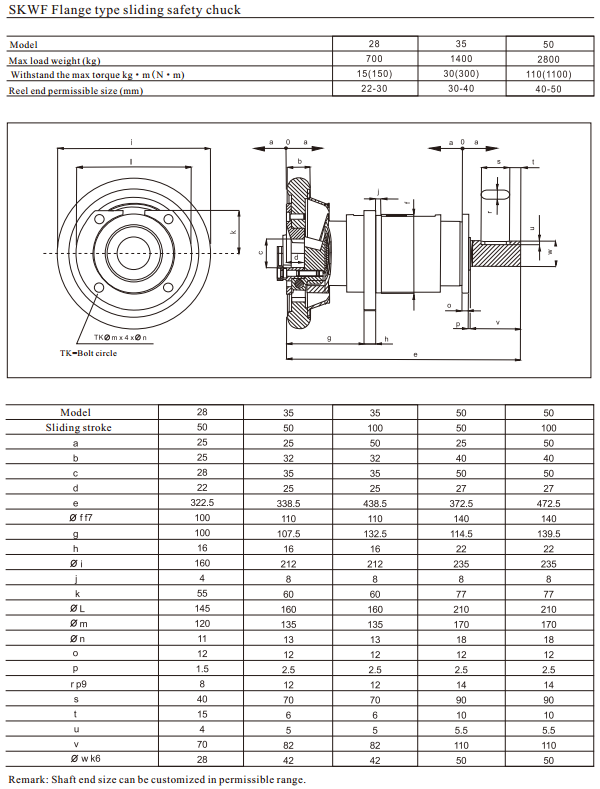

 Drawing and specification:
