Pneumatic safety chuck

Pneumatic safety chuck advantage:

1. Easy installation

2. It is suitable for continuous slippage and high frequency working environment working.

3. Soft start.

4. It can be used as a torque limiter.

5. Wide torque adjustment.

6. Driven by air pressure, it is anti-explosion and safe.

7. Long service life, lining is convenient for replacement, easy maintenance.



Pneumatic safety chuck outstanding:

1. Safety Chuck is a quick coupling used in shafted center wind and center unwind applications frequently and saves loading unloading time, it is fast, stable, easy and safe.

2. Precise process precision makes sure exact orientation.
3. Reel holding mouth adapts special heat treatment technology.
4. Replaceable VT type reel holding mouth/kit insert, prolong safety chuck service life greatly.




152-0180-5440

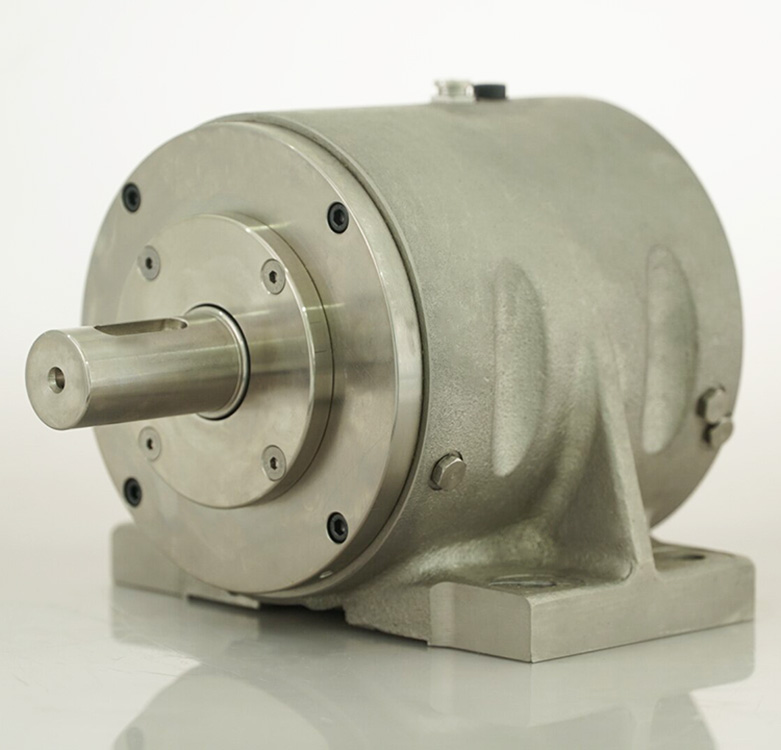

Pneumatic safety chuck

Pneumatic safety chuck characters:
1. Reasonable whole structure, stable, bear high twisting force, eliminate loose and slip phenomenon during working.
2. Kit insert with nickel plated and hardening treatment, sturdy and durable.
3. Adapts superior bearing makes sure roll material normal working in heavy load and high speed rotating.

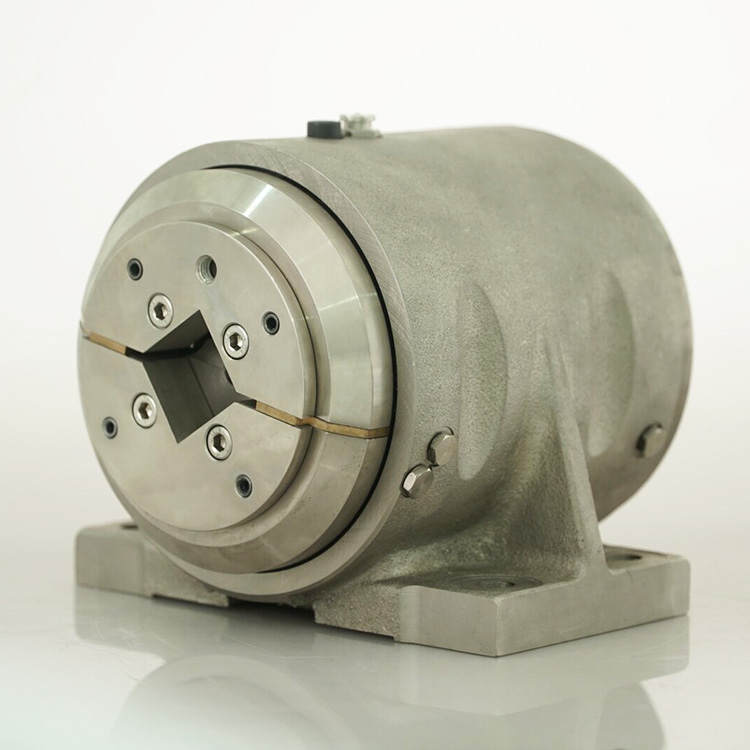

Pneumatic safety chuckPneumatic safety chuck

Pneumatic safety chuck category:

1. HD flange type safety chuck
2. HD pillow type safety chuck

Pneumatic safety chuck model:

Main model: STO/W-P40,STO/W-P50、FLO/W-P40,FLO/W-P50.

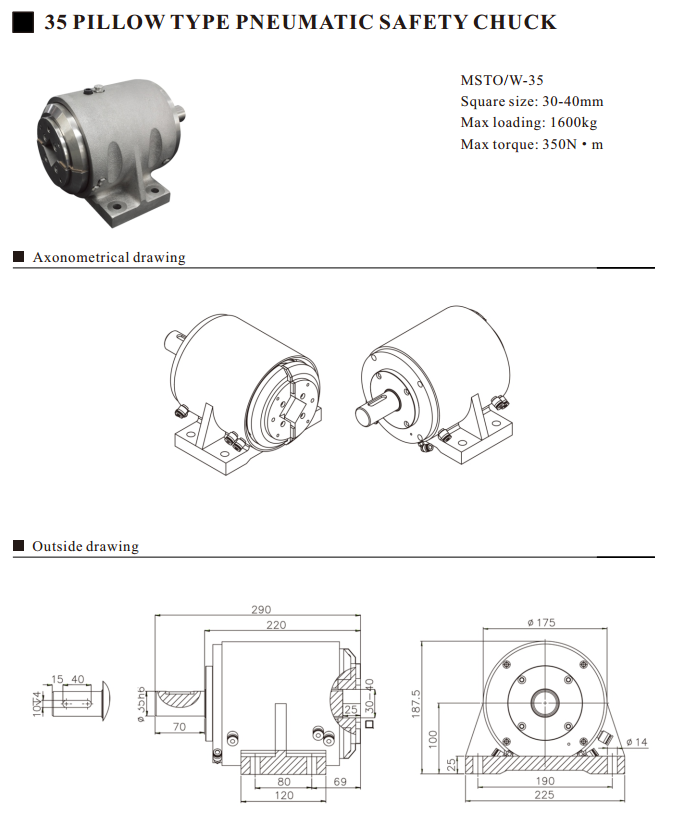

Pneumatic safety chuck technical data & structure (pillow type)

Pneumatic safety chuck

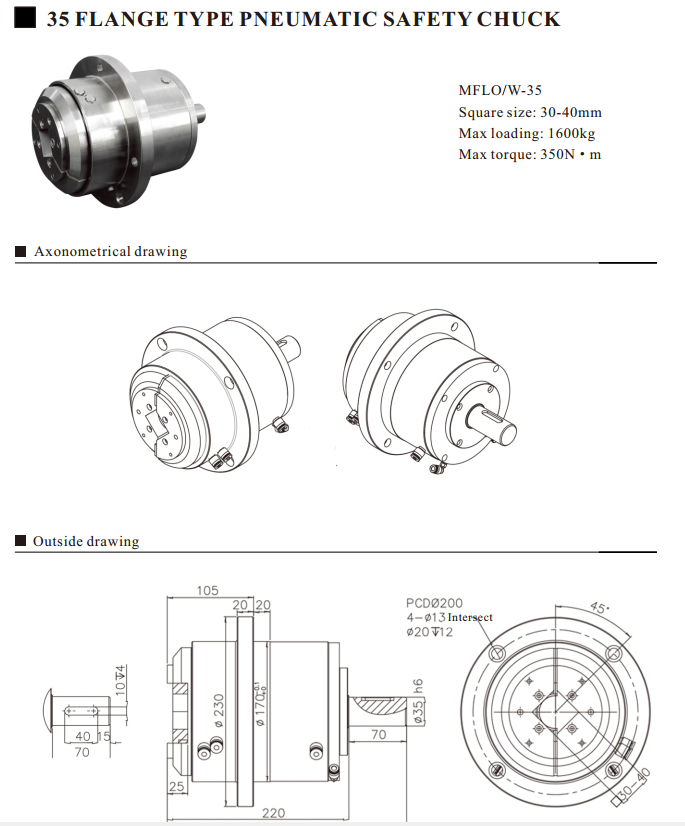

Pneumatic safety chuck technical data & structure (flange type)
