BTC type pneumatic tooth clutch is through center axle hole key connected with driving shaft, flange end connects with driven tooth plate. Except shaft-shaft installation, shaft-belt pulley, shaft-chain wheel, shaft-gear wheel installation are also available. Shanghai Handong Machinery Technology Co.,Ltd made this pneumatic clutch can replace NIIKA BTC, HAC RBTC made air shaft clutch. This is positive tooth clutch, when input air pressure, clutch linked; when exhasuting air pressure, this clutch released.
BTC-40 pneumatic tooth clutch is driven by air pressure. Compared with electromagnetic clutch, this pneumatic tooth clutch will not reduce torque and produce spark because of over heat, ensure heavy workload finished. Wide torque control range, it is most suitable work as a tension controller. Controlled by air pressure, soft start and stop. Through clutch operation, adjustment, stable engagement, so make full braking performance. Simple structure, easy maintenance and long service life.

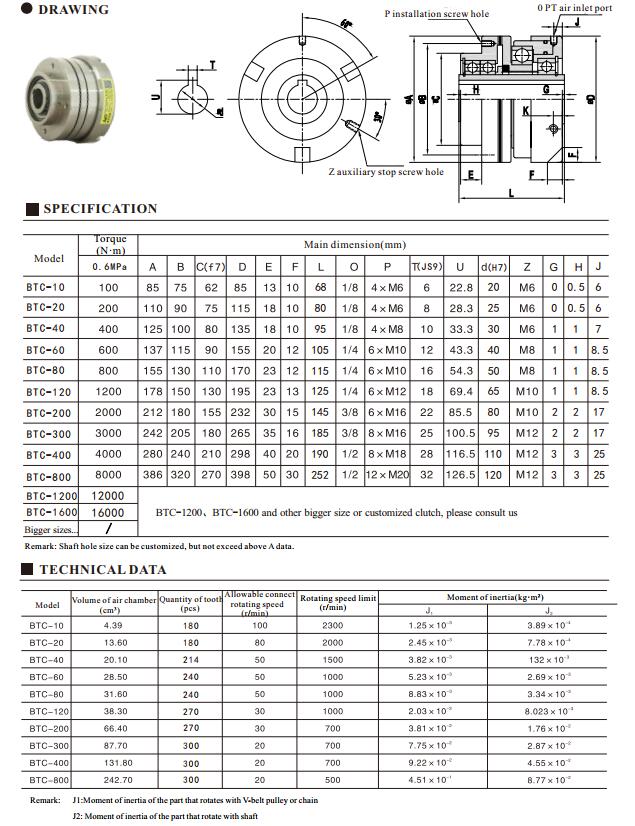

There are some models of this pneumatic tooth clutch:
BTC-10, BTC-20, BTC-40, BTC-60, BTC-80, BTC-120, BTC-200, BTC-300, BTC-400, BTC-800, BTC-1200, BTC-1600 or more...
BTC-10, BTC-20, BTC-40, BTC-60, BTC-80, BTC-120, BTC-200, BTC-300, BTC-400, BTC-800, BTC-1200, BTC-1600 or more...

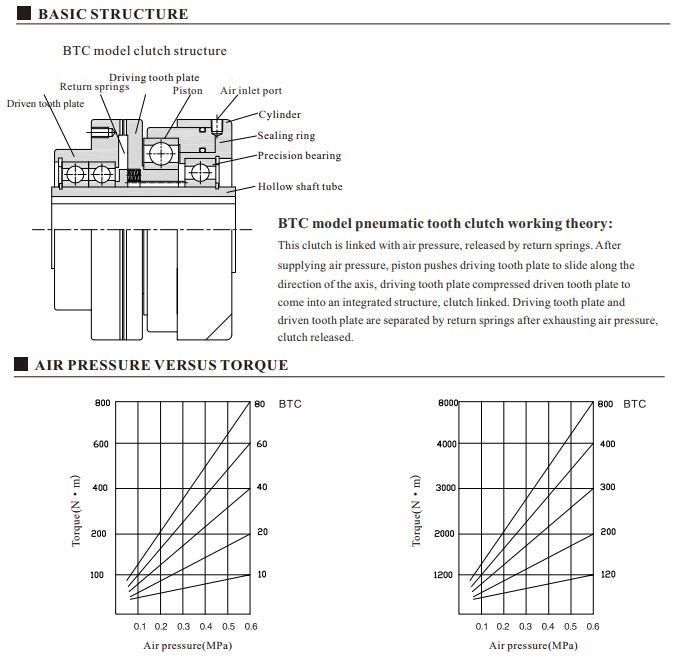

Structure of pneumatic tooth clutch:
