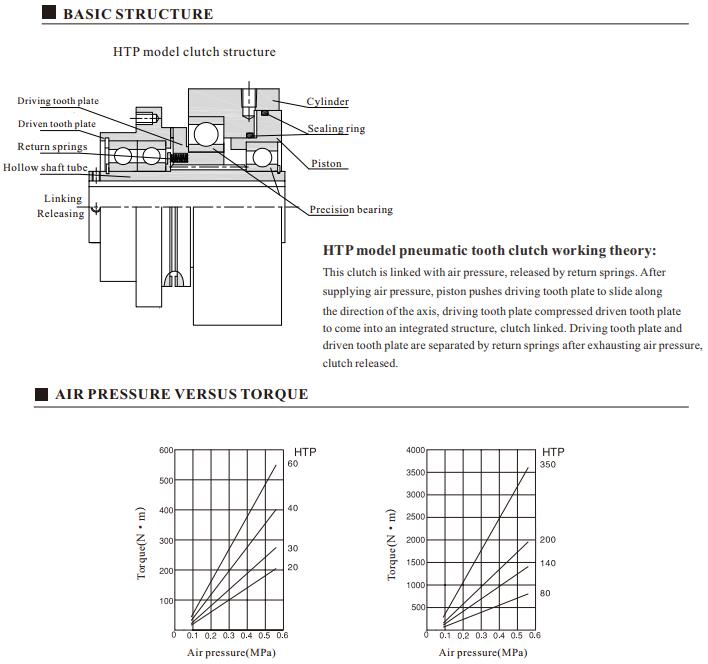

HTP Pneumatic tooth clutch is composed of two tooth plates, and driven by air pressure. After inputting air source, this HTP Pneumatic tooth clutch linked, strong structure and without slippage. Now this HTP Pneumatic tooth clutch is extensive applied in packing and printing machine, filling machine, food making machine and etc.
HTP Pneumatic tooth clutch is a kind of air shaft clutch, it is working via tooth and tooth plate connection. It is with compact size, while transmit high torque.
Following are the main advantage of this HTP Pneumatic tooth clutch:
1. Compact size, high torque.
2. Without installation deviation, transmit torque is no influence with rotating circle.
3. Integrated structure, it doesn't need to adjust tooth core during installation.
4. Connect and release in instant, long service life.
5. Take air source as power source, safer and environment protection than magnetic powder clutch.
6. Stable tooth plate structure, without slippage.

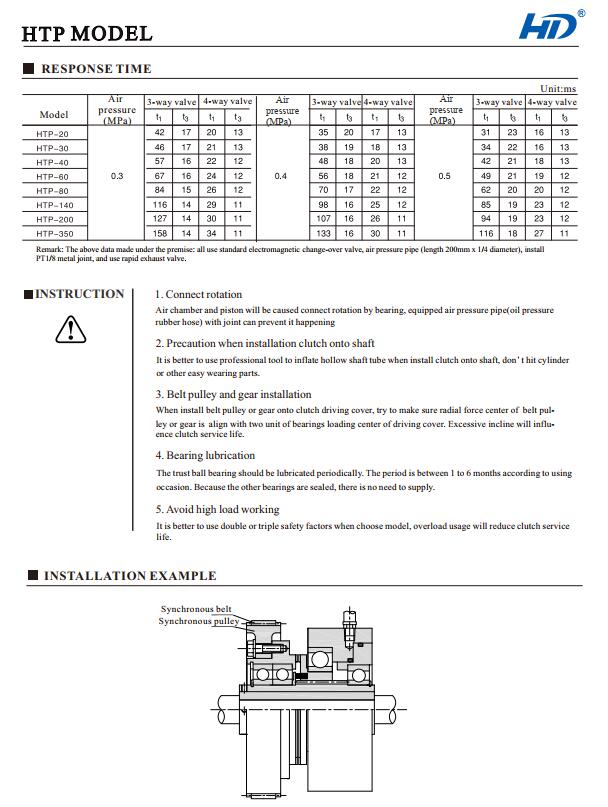

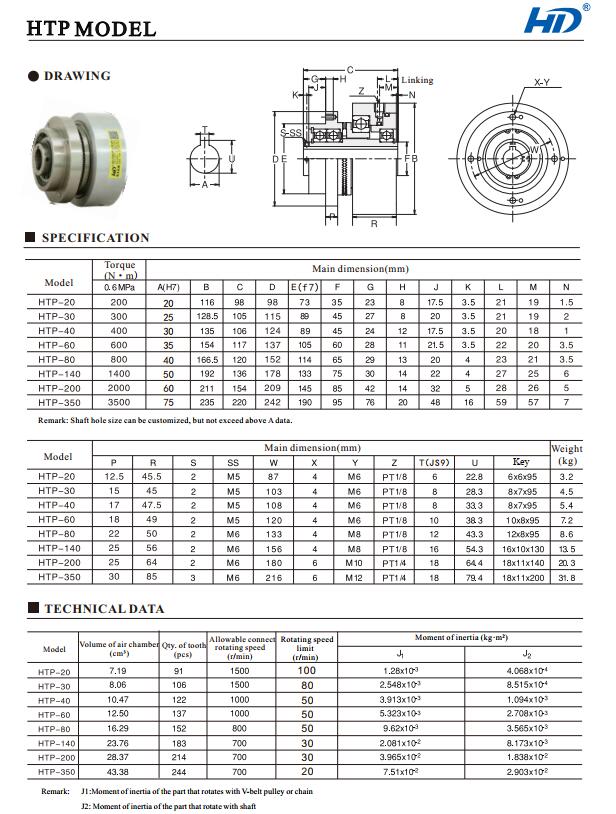

HTP Pneumatic tooth clutch with compact size, while transmit high torque. Following is the detail technical data and installation instruction for your reference:
