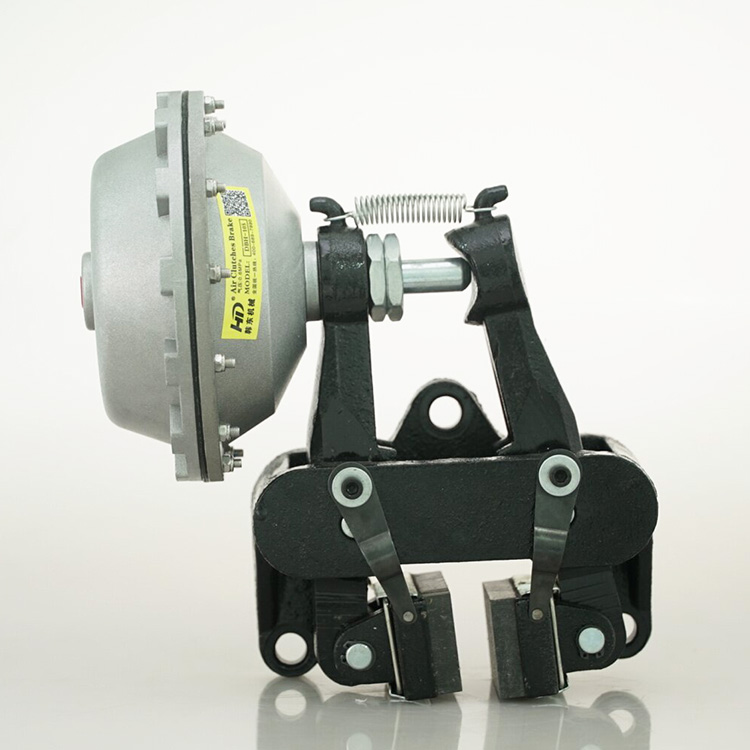

Air caliper disc brake is also called horizontal air brake or air disc, it can be divided into disc brake and shaft brake. This brake also can be divided into normally releasing (normally brake is released; when supplying air pressure, two ends of linings clamp braking disc for braking) and normally braking (normally two ends of linings clamped braking disc, brake is braked; when supplying air pressure, brake is releasing) types.

This horizontal air caliper disc brake torque is nearly twice of vertical type brake’s. Match with extension-type springs, can make sure braking balance. Braking disc thickness 10mm-20mm-38mm is available. Waterproof, dust-proof and heat resistance, can be frequent usage, function stable. Use air pressure as action resource, no electric spark, explosion-proof, safe and reliable. Braking force is adjustable, braking torque range is wide. Good dissipation, lining is wearable, two-cut type is easy for exchange.
