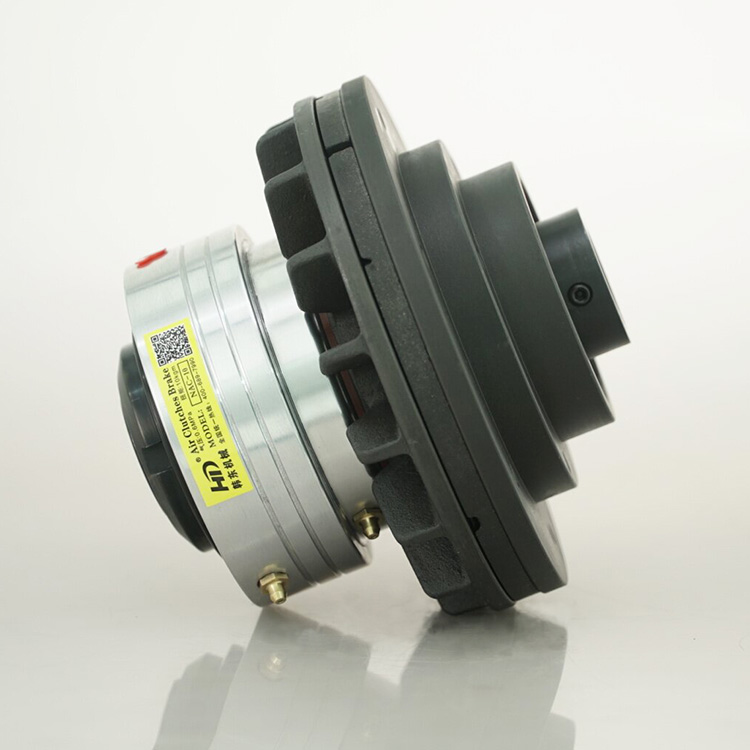

NAC Air shaft friction plate clutch description:
This NAC model air shaft friction plate clutch can replace HDC model friction disc clutch well. This air shaft clutch is widely used in rubber machine rollers, conveyor, elevator, handling machinery, food machinery, printing machinery, crusher, motor, tire and rubber machinery, packaging machinery, forming machinery, automatic machinery, wire machinery, sheet metal machinery, filling machinery, plywood machinery, medical machinery, stretching wire machinery, fiber machinery, metalworking machinery, pulverizing machinery, tire forming machinery, paper making machinery and etc.
Air shaft friction plate clutch characters:
1) Compact size, light and wide torque adjustment
Torque can be adjusted in wide range according to air pressure.
2) Safe and reliable
It will not produce electric spark.
3) Suitable for high-frequent, continue sliding movement industry situation
It is durable in high frequency, high load and continuous sliding movement industry situation, also can be used as limiter.
4) Soft start
It can reach soft start by adjusting air pressure.
5) Long service life
Good heat dissipation, thicker friction lining, so service life is long.
NAC model Air friction plate clutch can well replaced HDC friction disc clutch
This air shaft clutch is linked with air pressure, released by return springs. Disc relies on air pressure to slide along the direction of the axis, contacting the friction plate. Disc, friction plate and so on, are assembling to the wheel to come into an integrated structure. Disc and friction plate are separated by return springs air pressure exhausted, clutch released. Friction plate can be parted by adjusting screwing nuts.

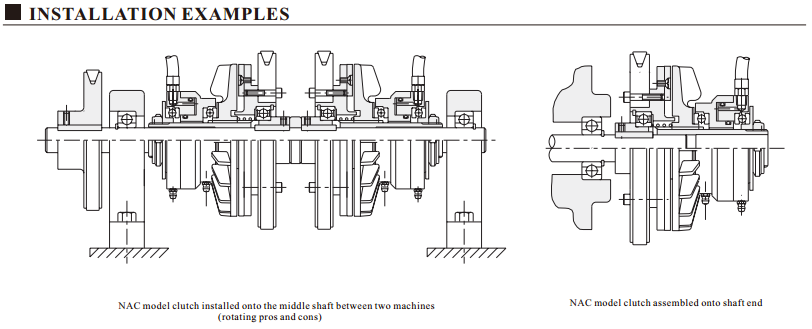

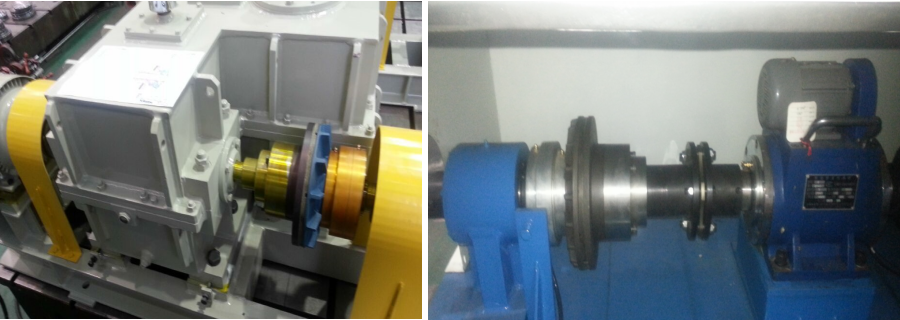

Installation Instruction
1) Precaution to install clutch
When install clutch onto shaft or install V-belt pulley, chain wheel onto rotating disc, please don’t hit clutch excessively. The gap between disc and friction plate should be between 0.5~ 0.8 mm.
2) Connect rotation
Air chamber and piston will be caused connect rotation by bearing, equipped air pressure pipe(oil pressure rubber hose) with joint can prevent it happening.
3) Bearing lubrication
The trust ball bearing should be lubricated periodically. The period is between 1 to 6 months depends on the working condition. The other bearings are sealed, there is no need to supply.
4) Installation size
Try to make sure the distance between axial center part of V-belt pulley or chain wheel and end face is during allowable range. When install clutch onto shaft end, the minimum length of shaft which inserted into inner surface of hub.
A. PRODUCT ADVANTAGE

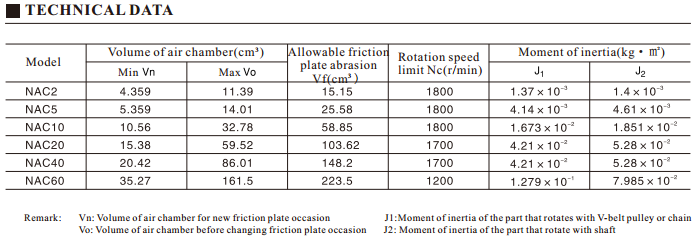

Technical data:
Product name: NAC mode air friction plate clutch
Product category: Air clutch
Brand: HD
Model: NAC-2,NAC-5,NAC-10,NAC-20,NAC-40,NAC-60/
Weight: 2.9-50kg
Torque: 26-590N.m
Shaft diameter: 20-60mm
Rotating speed range: 1200-1800r/min

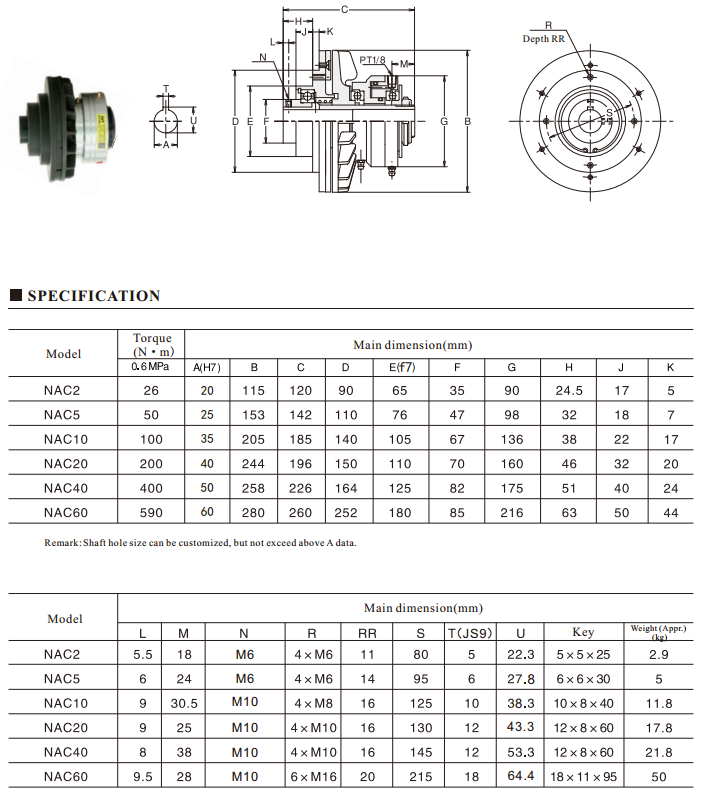

Drawing
