BTC pneumatic tooth clutch is plane tooth connection, it is high precision and without slippage, which is can be applied in harsh working environment. It is with compact size and can be used in narrow working space, while can transmit high torque. This tooth type clutch installation, it should be has a certain gaps between tooth and tooth plates, make sure it will not gear grinding phenomenon in idle rotating.
This BTC air tooth clutch can be divided into integrated and separated two structures, it can be chosen a suitable installation mode and structure for different working situation.
This BTC split clutch is controlled by air pressure, through air source to make it separated and linked. Inputting air source, clutch linked, outputting air source, clutch separated.
Characters of this BTC pneumatic clutch:
· Shaft-Flange structure. Customer can choose belt, chain wheel, sproket, gear and others for installation as need.
· Shaft-Shaft structure. Two ends of clutch are both shaft, it can be equiped with key groove, spline and expansion sleeve are available.
· Tooth and tooth plates structure, it is tighter than friction structure after linking.
· Low speed or static connection, high speed rotating after linking.
(Shaft-Shaft installation)

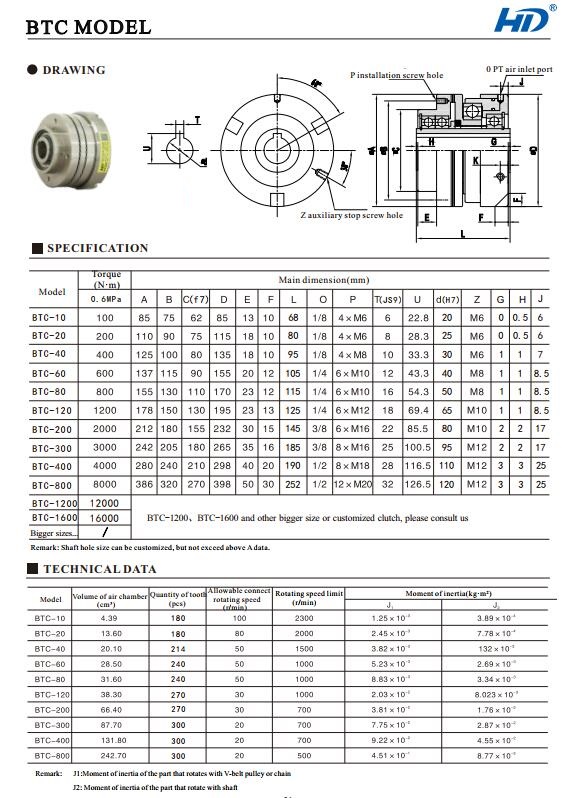

This is the technical data of BTC pneumatic tooth clutch for you reference:
Structure:
