NAB-0.2 model air brake working theory:
NAB model brake relies on air pressure to brake, return springs to release. After supplying air pressure, piston pushes piston aircraft and friction plate move towards to and compressed shaft attached lining disc, disc and other rotating parts stopped, brake braked. After exhausting air pressure, piston aircraft and friction plate are separated with shaft attached lining disc by return springs, brake released.
It reduced heat generated from friction by cooling plate mounted on disc with hub. Friction plate is two-cut style, using screwdriver to take out head inside screw through hole of disc with hub,
in order to replace friction plate.
It can well replaced BSM2/BSM7,X micro air shaft brake with good quality.
NAB model brake relies on air pressure to brake, return springs to release. After supplying air pressure, piston pushes piston aircraft and friction plate move towards to and compressed shaft attached lining disc, disc and other rotating parts stopped, brake braked. After exhausting air pressure, piston aircraft and friction plate are separated with shaft attached lining disc by return springs, brake released.
It reduced heat generated from friction by cooling plate mounted on disc with hub. Friction plate is two-cut style, using screwdriver to take out head inside screw through hole of disc with hub,
in order to replace friction plate.
It can well replaced BSM2/BSM7,X micro air shaft brake with good quality.
Micro air brake NAB-0.2 main characters:
1. Compress size, ligh, torque can be adjusted according to air pressure;
2. Mechanical design, without electrical components, safe and convenient;
3. Suitable for high frequency , high load working;
4. Superior structure and function, can reach smooth rotate and stop.
1. Compress size, ligh, torque can be adjusted according to air pressure;
2. Mechanical design, without electrical components, safe and convenient;
3. Suitable for high frequency , high load working;
4. Superior structure and function, can reach smooth rotate and stop.
NAB-0.2 model air brake technical data:

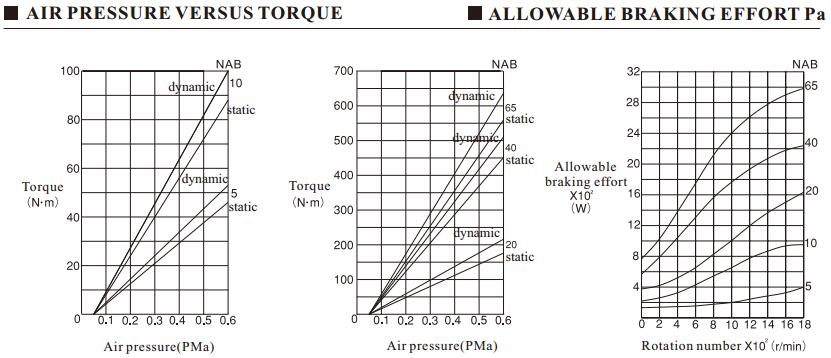

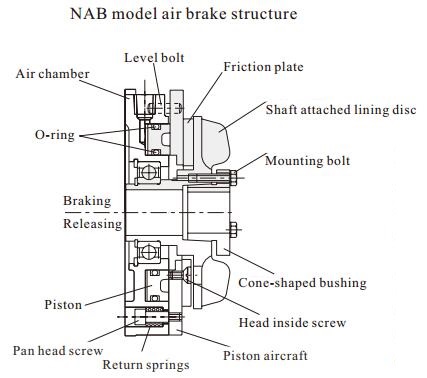

NAB-0.2 model air brake structure:
