VC type Pneumatic drum type brake
VC type pneumatic drum type brake, after supplying air pressure, lining and drum compressed, when drum rotated together and transmit torque, it used as a clutch; when drum is fixed, it used as a brake, it depends on actual need.

It is widely used in marine generator, winch, steel, paper making, printing, packaging, aviation, shearing, ball mill, press, forming, oil, metal processing and other industry fields. In mechanical industry field, Shanghai HD company not only matched with electric tool such as STANLEY BLACK & DECKER, Hilti, but also cooperated with garden machinery, textile machinery, gating system and other industries.



152-0180-5440

View other product information>>

VC type Pneumatic drum type brake

VC type pneumatic drum type brake, after supplying air pressure, lining and drum compressed, when drum rotated together and transmit torque, it used as a clutch; when drum is fixed, it used as a brake, it depends on actual need.

VC type Pneumatic drum type brake

VC type Pneumatic drum type brake main characters:

1. Small size while transmit high torque and rotating force
2. Strong durability and abrasion strength.
3. Long service life and convenient operation.
4. Easy mounting and unloading during working.

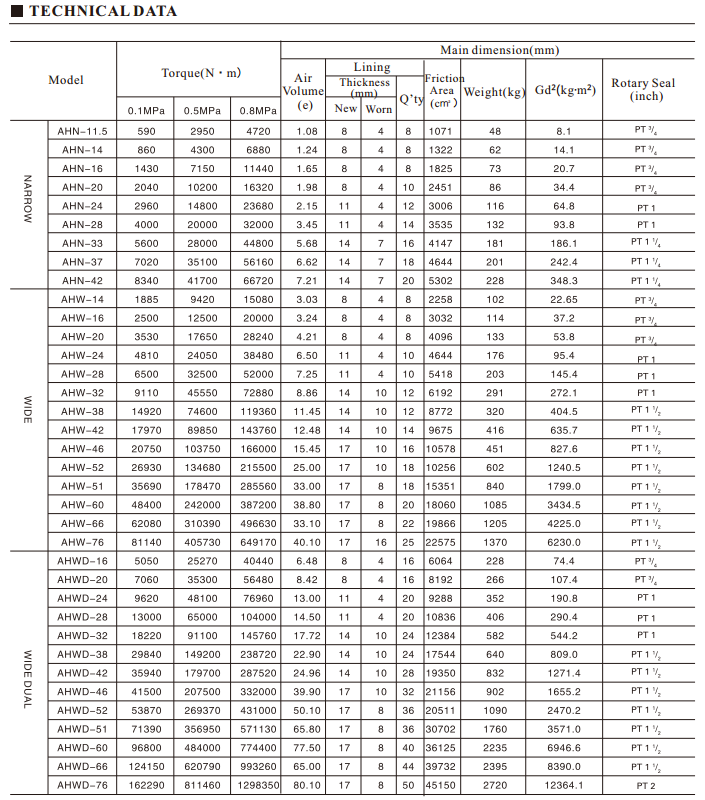

VC type Pneumatic drum type brake technical data (the same as AH type)

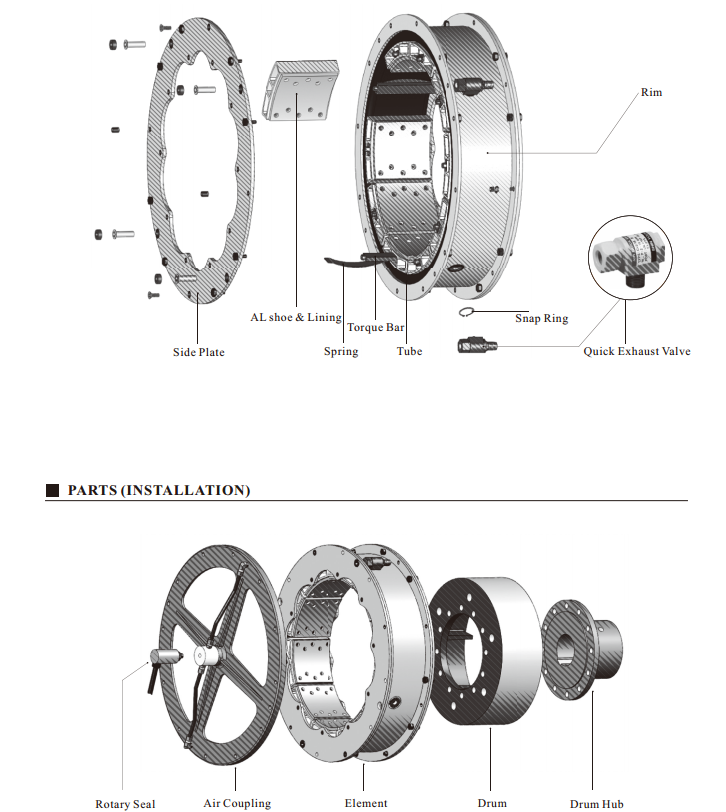

VC type Pneumatic drum type brake structure
