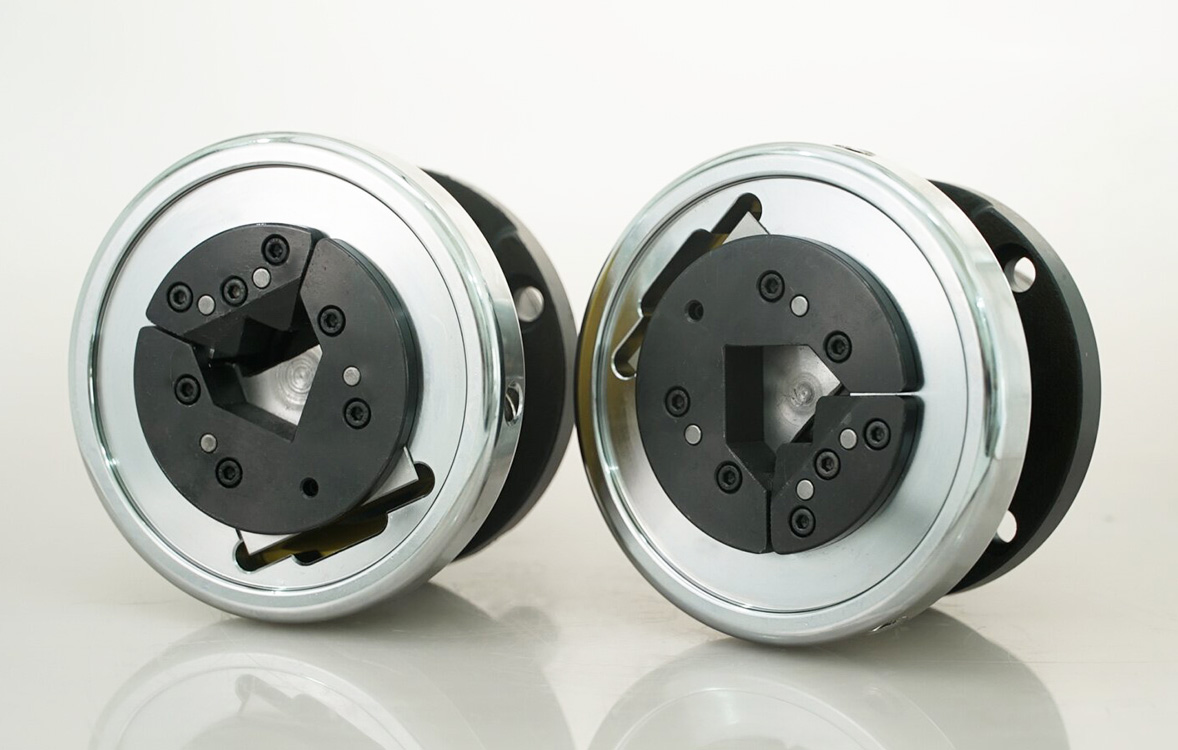

Winding and unwinding manual safety chucks used in tire forming machine, texitle machine, printing machine, packing equipment

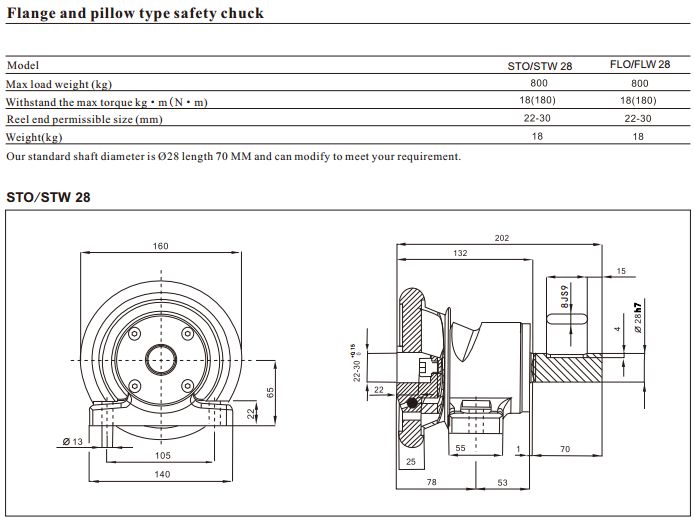

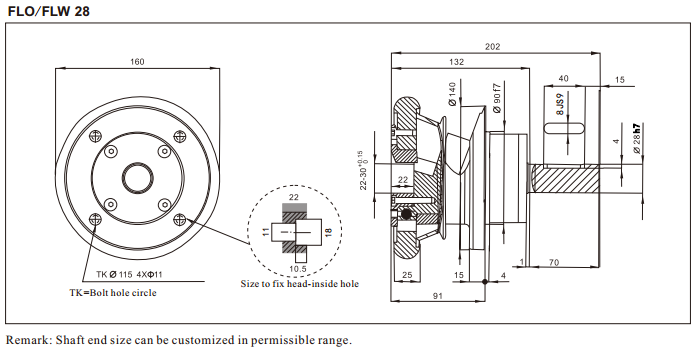

Winding and unwinding safety chuck is used for winding and unwinding roll materials. As needed, connected with motor for driving rotation and driven rotation both available. It also can be matched manual damper, air damper, brake, clutch to adjust roll material tension. This safety chuck is widely used in tire machinery, tire cord manufacturing machinery, rubber conveyor, paper making machinery and other winding and unwinding machinery. It can be divided into pillow and flange types according to different usage situation.

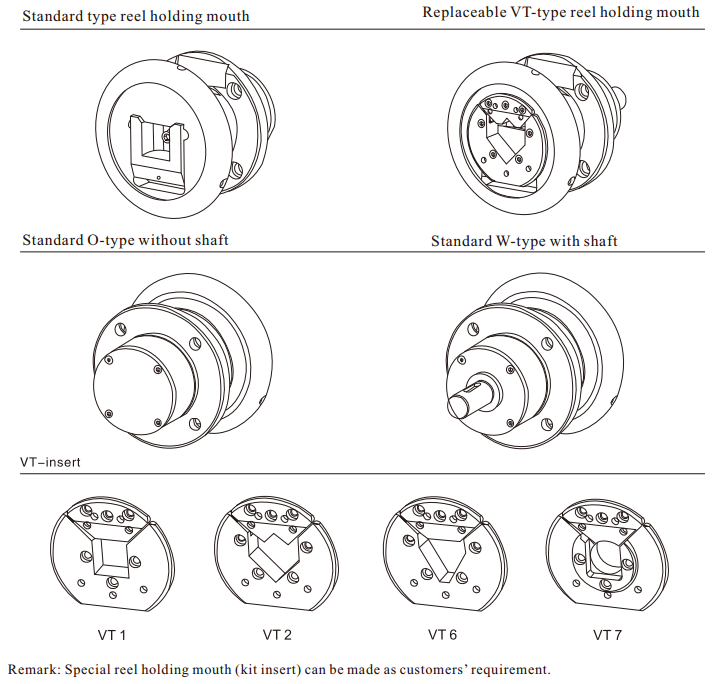

Winding and unwinding safety chuck is the fast, stable, easy and safe coupling for transmission, shaft loading and unloading frequently. Precise process makes sure orientation exactly. Reel insert use special heat treating technology, replaceable VT type reel insert, prolong safety chuck’s service life greatly.

Winding and unwinding safety chuck advantage:
1. Advanced design concept, structure scientific and humanized.
2. Can bear big torque and prevent shaft loose during rotating.
3. Output shaft can match with manual damper, air damper, clutch and brake as needed.
4. Body is welded by anti-bending, anti-torsion seamless steel tube and steel board. Good tensile strength and flexion, meet shaft usage function.
5. Body is enamel coating thicker, strong adhesion. The film has bright luster and high hardness.
