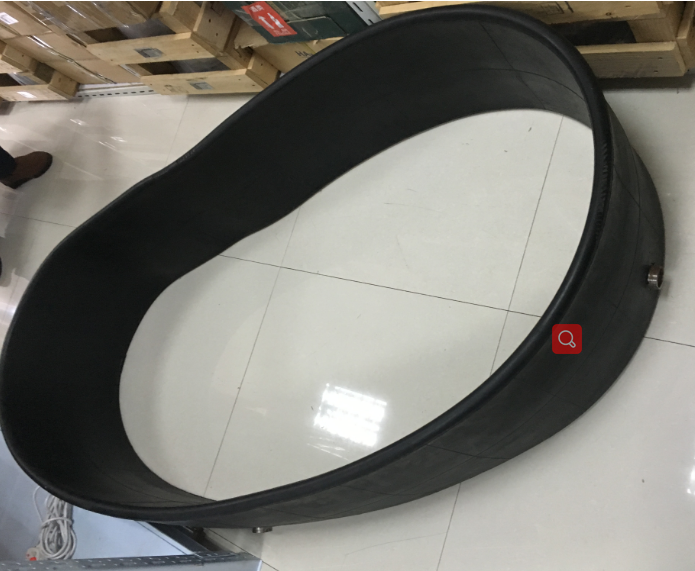

Pneumatic actuated drum clutch’s air tire also called air tube, it is the important part of pneumatic clutch. It can decompression and buffering during working.
Pneumatic actuated drum type clutch transmits high torque, engagement stable, compression and flexible coupling. It is usually used in fast turn around large equipment, such as oil drilling machinery, ship, large press machine, excavating machine, ball grinding mill, rubber and plastic machine and etc.
Pneumatic actuated drum type clutch’s air tire
Pneumatic actuated drum clutch’s air tire also called air tube, it is the important part of pneumatic clutch. It can decompression and buffering during working.
Product Advantage
Pneumatic actuated drum type clutch transmits high torque, engagement stable, compression and flexible coupling. It is usually used in fast turn around large equipment, such as oil drilling machinery, ship, large press machine, excavating machine, ball grinding mill, rubber and plastic machine and etc.
Rated input torque: 720kg.m
Max input torque: 780kg.m
Max transmit torque: 1460kg.m
Rated input rotating speed: 460r/min
Max working pressure: 0.8MPa
Working pressure: 0.6Mpa
