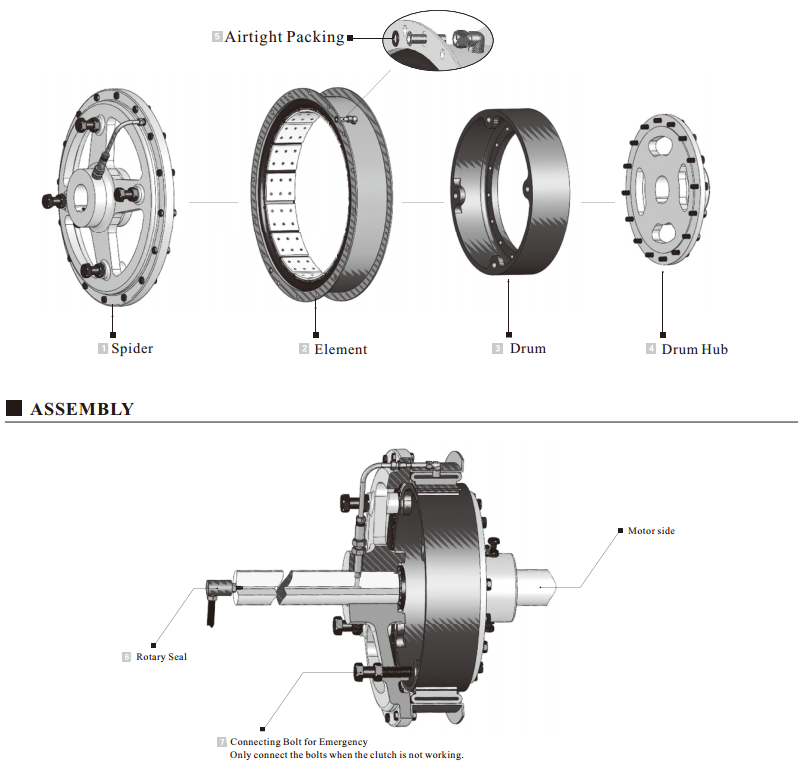

Spider, Element, Drum, Drumhub, Sealing ring.

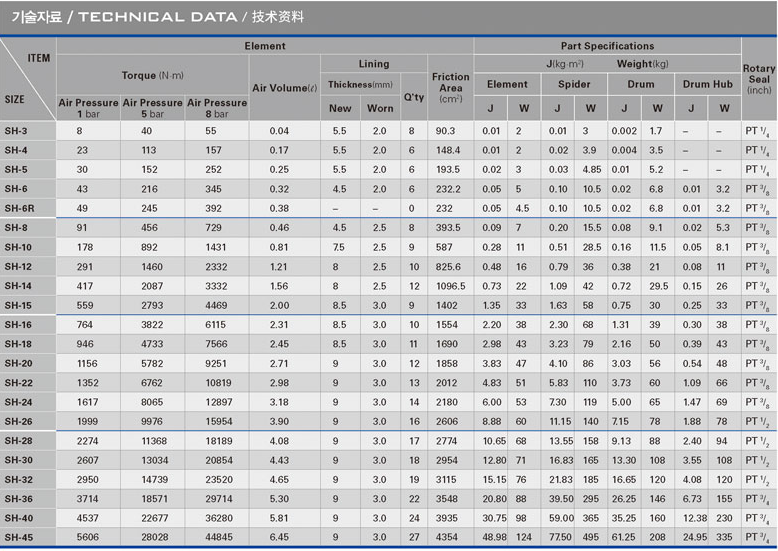

Direction of above product application guide:
To select right clutch or brake size, should figure out R.P.M of using machine and H.P (Horse Power) including Safety Factor (Table 1). Then, first find out the R.P.M and nearest value to the H.P from the above guide.
Finally, choose the clutch or brake size of the top pf column.
Ex) in case of 400 H.P (including safety factor) x 500 R.P.M., find out 405H.P in 500 R.P.M line, then choose SH-22 size of the top of the column.

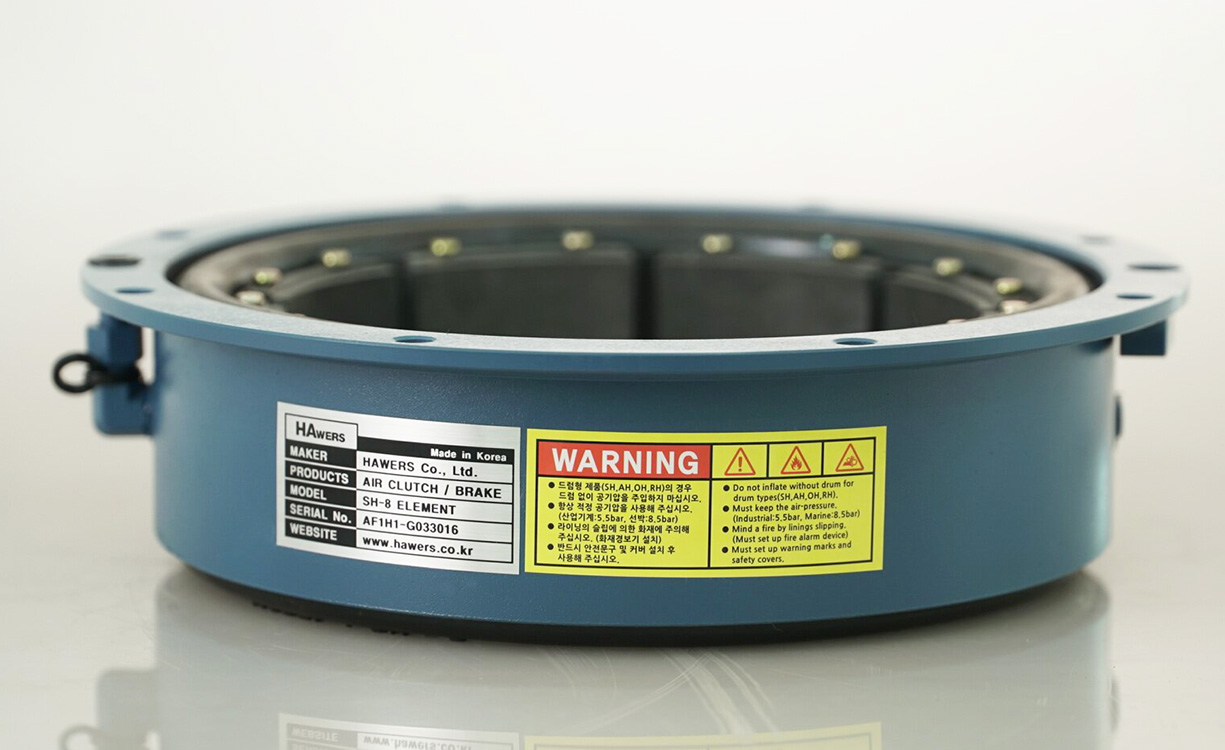

SH-4(4CB200) model drum type clutch or brake Advantage:

SH-4(4CB200) model drum type pneumatic clutch or brake is HAwers’ representative product. This SH type can be engaged with an inside drum by pneumatically actuated tube with linings. It can be applied to Clutches (power transmission) or Brakes (power braking).
SH-4(4CB200) model drum type clutch or brake  application
Industries: Shearing, Press, Forming, Tester, etc.
Marines: Generator, Pump, Winch, etc.
