SH model pneumatic drum type brake, after supplying air pressure, lining and drum compressed, when drum rotated together and transmit torque, it used as a clutch; when drum is fixed, it used as a brake, it depends on actual need.
SH model Pneumatic drum type brake or clutch outstanding:
1.Small size, transmit high torque.
2.Long use life, excellent abrasion of linings.
3.Simple structure, easy assembly and dis assembly.
4.Work as brake or clutch

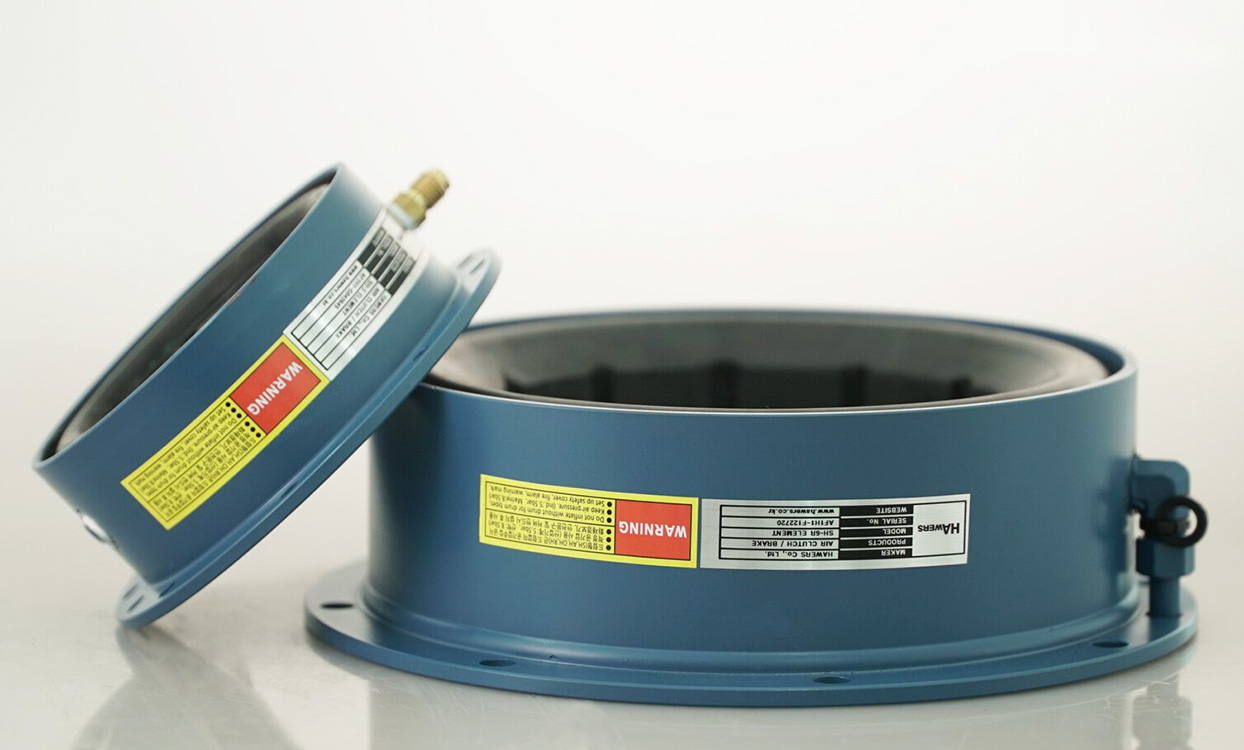

SH model Pneumatic drum type brake or clutch
SH model pneumatic drum type brake, after supplying air pressure, lining and drum compressed, when drum rotated together and transmit torque, it used as a clutch; when drum is fixed, it used as a brake, it depends on actual need.
SH model Pneumatic drum type brake or clutch main characters:
1. Small size while transmit high torque and rotating force.
2. Strong durability and abrasion strength.
3. Long service life and convenient operation.
4. Easy mounting and unloading during working.
