PRODUCT ADVANTAGE
1. Springs for braking
Use springs for braking, supplying air pressure for releasing, many models are available.
2. Auto braking
When power cut or low air pressure, braking automatically.
3. Good heat dissipation
There is cooling fan, can be used in hard working environment.
4. Lining replacement easy
Two-cut type lining, replacement it without changing anything of the mechanical equipment.
5. Simple but stable structure
Simple structure, reliable and long service life.

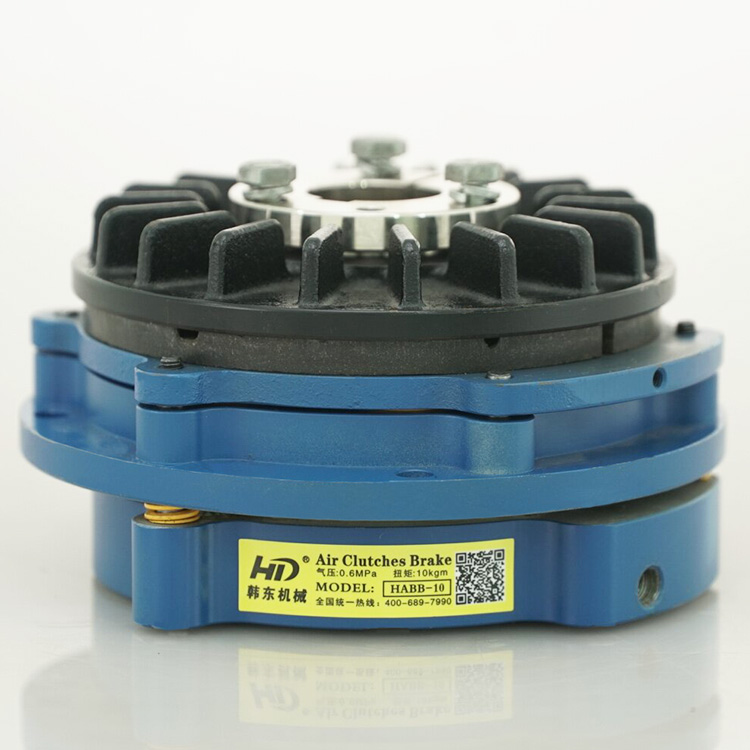

HABB model air brake (springs apply air release) can replace HDBB/TSE model air spring applied air brake
HABB mode air brake is also called safety brake, exhausting air pressure, brake is braked by springs, supplying air pressure, brake is released. It is suitable for preventing accident and emergency braking. HABB model air brake is linked by springs, and released by air pressure. If supply air pressure from flow control valve, cylinder will be move, pan head screw and piston rack rotating together, compressing braking springs, friction plate and bushing disc separated, brake released. If exhausting air pressure, springs compress piston rack, friction plate touched with bushing disc, brake linked.

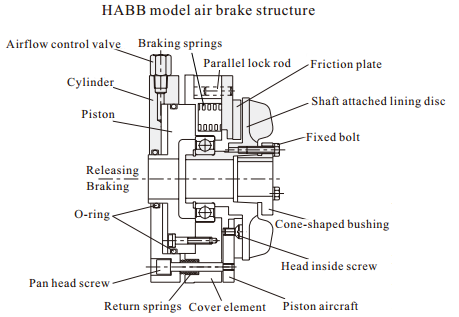

HABB model air brake (springs apply air release) working thoery:
Normally, friction plate is compressed with shaft attached lining disc by braking springs, brake braked. After supplying air pressure, piston aircraft and friction plate moved back by cylinder, friction plate and disc are separated, brake released. After exhausting air pressure, friction plate and shaft attached lining disc compressed again by braking springs, brake braked
