20CB500 model drum type pneumatic clutch

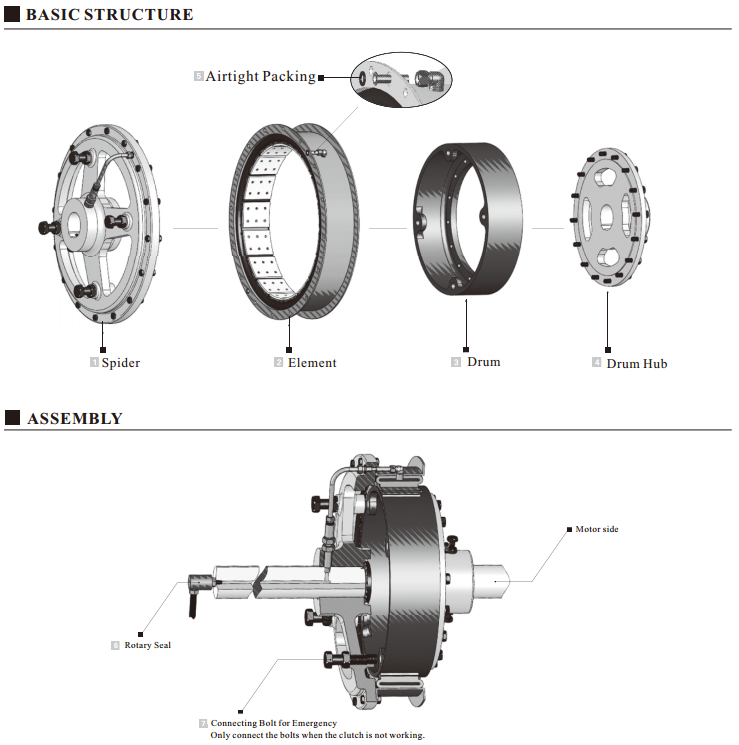

CB model drum type pneumatic clutch is driven by air pressure, it doesn’t have other clutch needed splines or complex electrical connections, can eliminate many mechanical trouble, and reduce maintenance cost least. CB mode air constricting clutch is a close-circuit system. It is only need to supply air pressure when clutch start. It doesn’t need to disassemble driving shaft and driven shaft, take out element and hub from middle shaft by dismantling screw bolt is ok.

PRODUCT ADVANTAGE

20CB500 model drum type pneumatic clutch main characters:

1. Small size while transmit high torque and rotating force
2. Strong durability and abrasion strength.
3. Long service life and convenient operation.
4. Easy mounting and unloading during working.

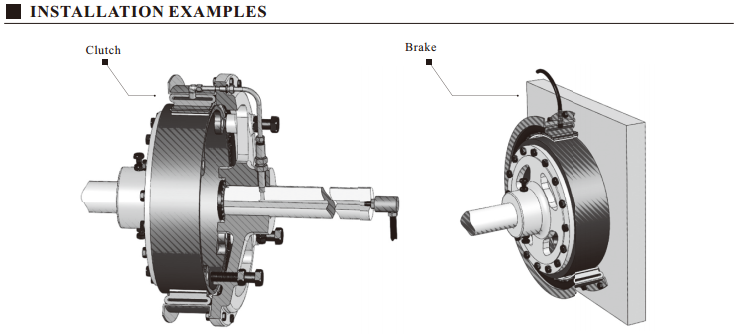

5.This SH type can be engaged with an inside drum by pneumatically actuated tube with linings. It can be applied to Clutches (power transmission) or Brakes (power braking). CB or SY model drum type pneumatic clutch transmit torque can be under 0.1Mpa, 0.5Mpa, 0.8Mpa air pressure flexibly. This drum type brake is usually used on large industrial machinery.
