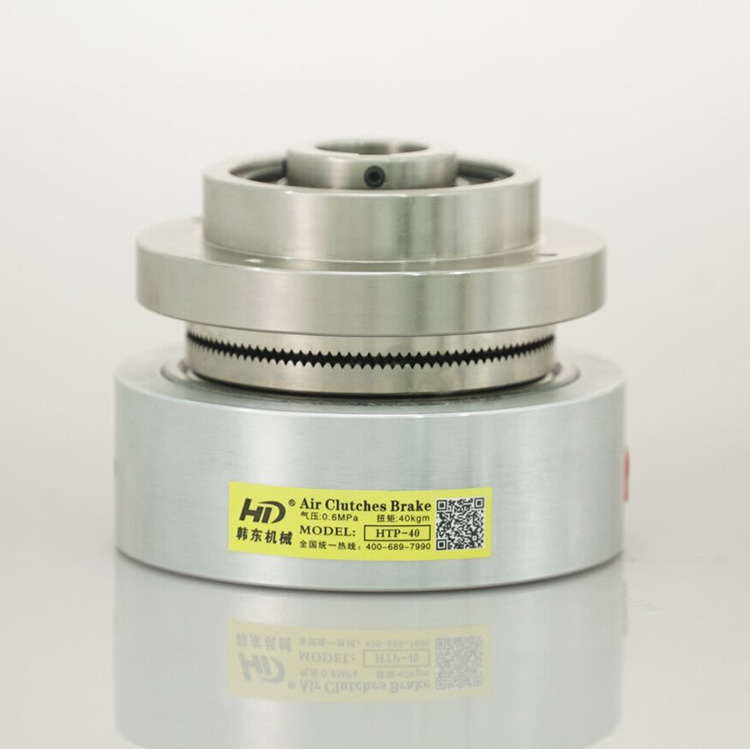

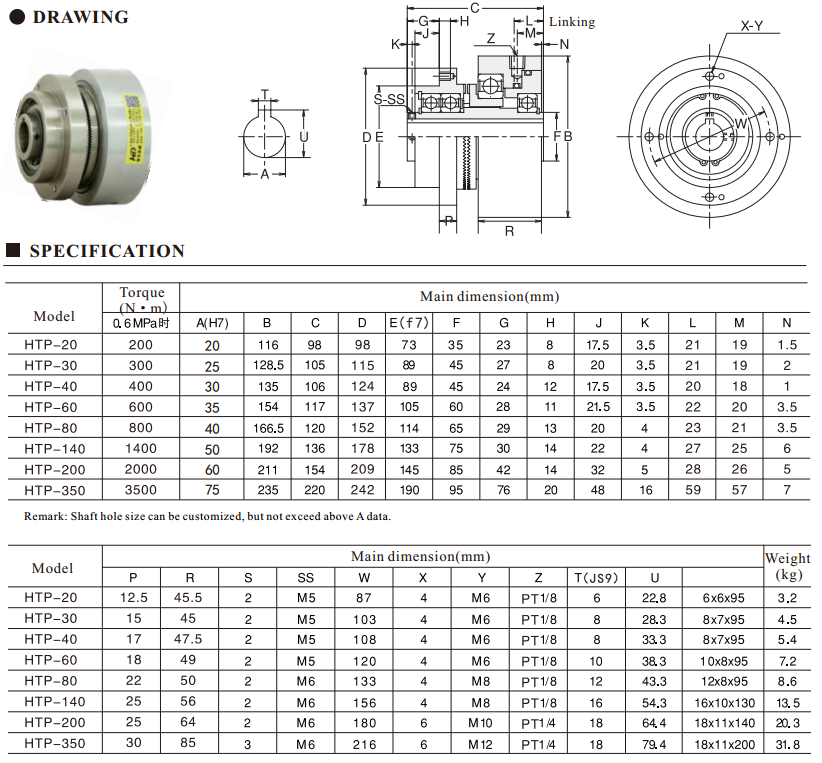

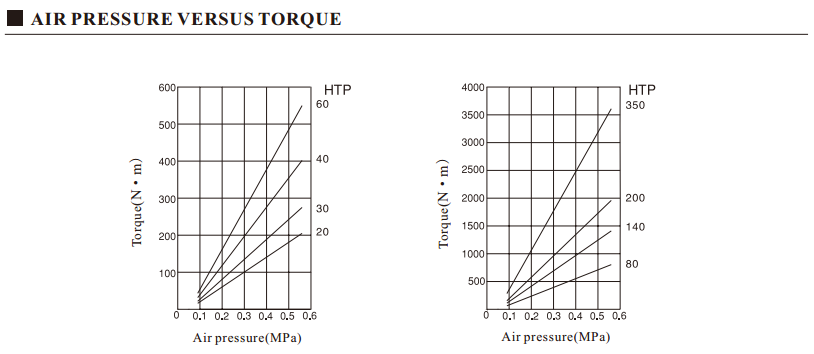

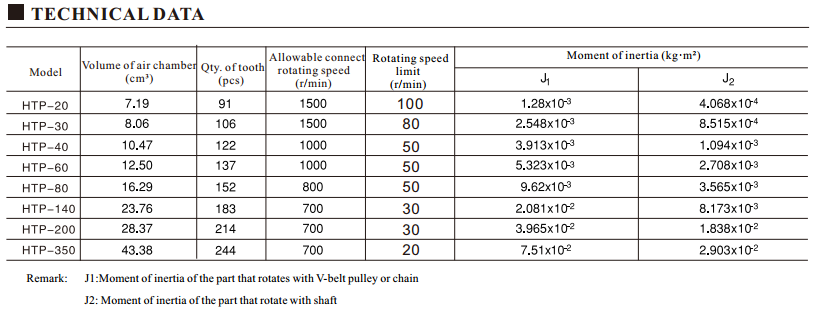

HTP model Pneumatic tooth clutch description:

It is a kind of tooth clutch, can transmit high torque. This model pneumatic clutch can well replace CTHP model pneumatic tooth clutch used in tire shaping machine, medical appliances, food machine, printing press, crusher, etc. to connect the power and driven part. This clutch is linked with air pressure, released by return springs. After supplying air pressure, piston pushes driving tooth plate to slide along the direction of the axis, driving tooth plate compressed driven tooth plate to come into an integrated structure, clutch linked. Driving tooth plate and driven tooth plate are separated by return springs after exhausting air pressure, clutch released.

HTP model pneumatic tooth clutch main characters:

1. High torque, no slippage
Tooth integrated structure, compact size, no slippage, while transmit high torque.

2. Transmit torque is stable
It will not influenced by installation deviation, transmit torque is independent with rotation quantity, it is stable.

3. Easy installation
It is integrated structure, so it doesn’t need to adjust tooth core during installation.

4. Perfect response function
Rapid response, integration and connection finished in instant, tooth is without damage, long service life.

5. Dry and wet working environment both can be work.

6. Because of tooth connection, so it is low speed or static engagement, high speed engagement will lead to tooth slippage.

Shaft tooth clutch installation precaution:
1. Connect rotation
Air chamber and piston will be caused connect rotation by bearing, equipped air pressure pipe(oil pressure
rubber hose) with joint can prevent it happening
2. Precaution when installation clutch onto shaft
It is better to use professional tool to inflate hollow shaft tube when install clutch onto shaft, don't hit cylinder or
other easy wearing parts.
3. Belt pulley and gear installation
When install belt pulley or gear onto clutch driving cover, try to make sure radial force center of belt pulley or
gear is align with two unit of bearings loading center of driving cover. Excessive incline will influence clutch
service life.
4. Bearing lubrication
The trust ball bearing should be lubricated periodically. The period is between 1 to 6 months according to using
occasion. Because the other bearings are sealed, there is no need to supply.
5. Avoid high load working
It is better to use double or triple safety factors when choose model, overload usage will reduce clutch service life.
